Shearing Machine Guillotine Type

Hydraulic shearing machine provide precise sheet metal cutting for stainless steel, aluminum and carbon steel fabrication industries.

Shearing Machine

Shearing Machine Guillotine Type

A guillotine shearing machine is selected for stronger cutting control, thicker material, better edge quality, and more demanding sheet or plate cutting than a basic shear application.

Main Features:

  1. The frame and blade carrier are steel structural parts. The upper blade carrier is tempered to eliminate internal stress, with strong rigidity and good structural stability.
  2. Under the action of the oil cylinder, the blade carrier moves up and down along the guide rail to realize the shearing action.
  3. The back gauge adopts ball-screw transmission, and the adjustment of the back-gauge distance is driven by a motor. Positioning is accurate, and operation is fast and smooth.
  4. The hold-down mechanism consists of a group of hold-down cylinders. Under the action of pressure oil, the hold-down cylinders overcome the spring tension to press the sheet material.
  5. After shearing is completed, it returns by means of the spring tension.
  6. To facilitate shearing of wider sheets, a front support frame is provided on the front of the machine. One of them is equipped with a scale and side positioning stop.
  7. The hydraulic system has overload overflow safety protection, and the oil level is displayed clearly and intuitively. The machine can work continuously for 16 hours under rated load. The hydraulic system ensures no leakage, continuous and stable processing, and high accuracy.

Share:

Detailed Description

Configuration Details

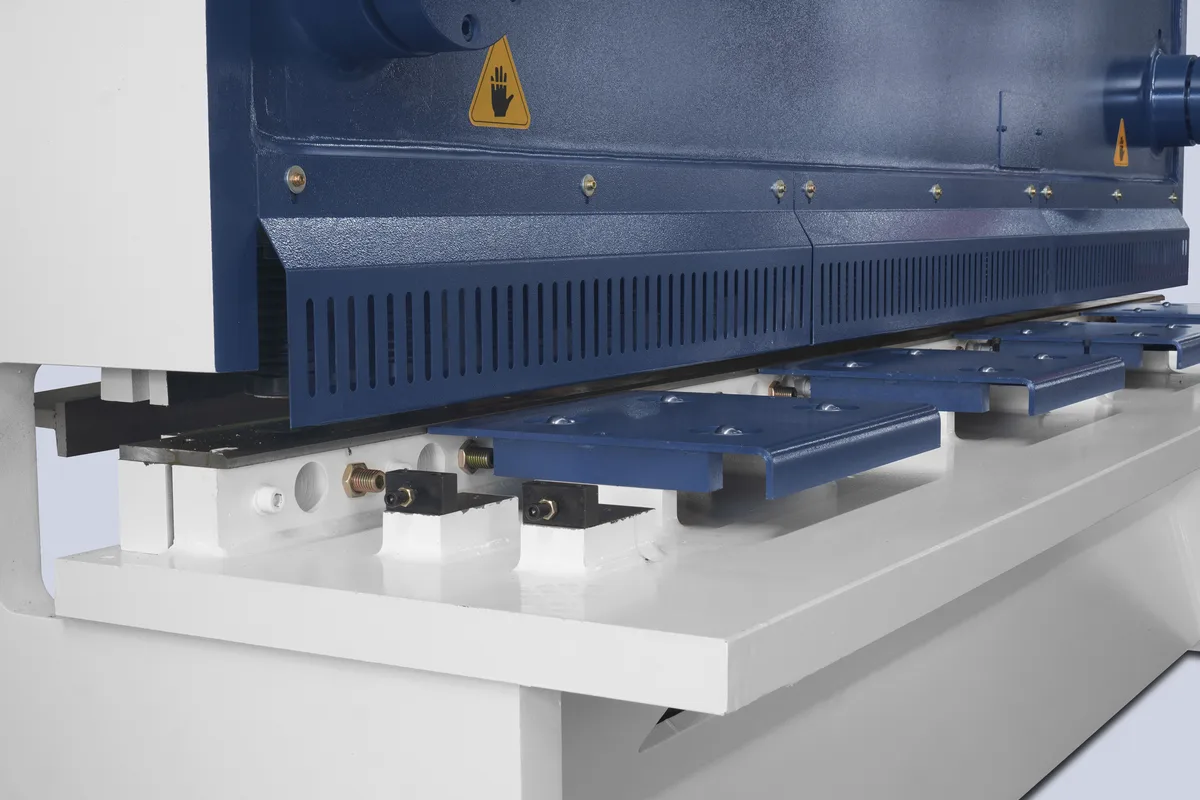

Structure

The guillotine type shearing machine uses a fully welded steel frame integrated with the workbench, giving the machine strong rigidity against the torque load generated during cutting. A stable structure helps reduce vibration and supports accurate sheet positioning.

The blade beam moves in a near-vertical linear path relative to the lower blade, which helps reduce sheet distortion during cutting. This structure is suitable for workshops that require straight cutting edges, stable shearing accuracy, and reliable long-term operation.

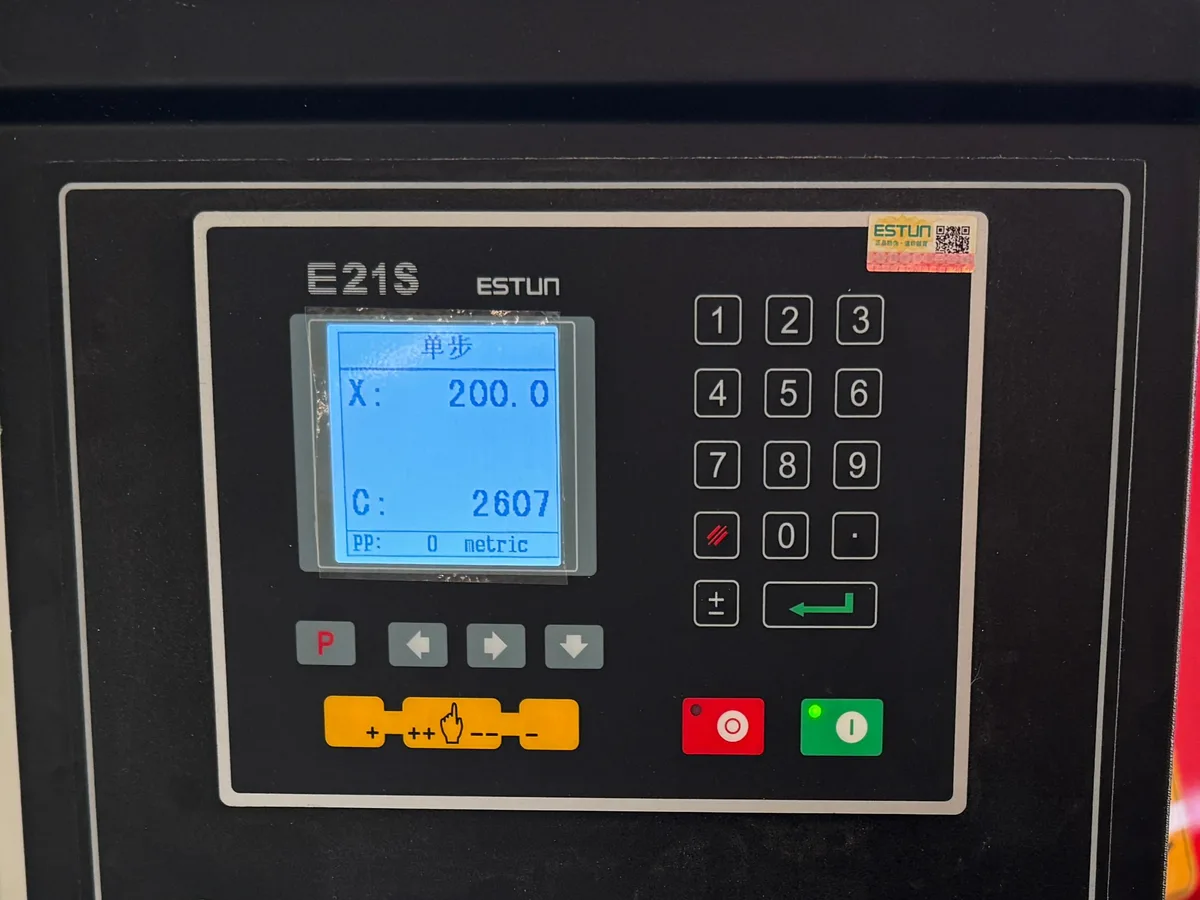

Control System

The control system manages backgauge positioning, blade gap adjustment, shearing angle setting, and cutting stroke control. A practical controller helps operators set cutting parameters quickly according to material thickness and sheet width.

Depending on the final configuration, the machine can be equipped with a CNC shearing controller or a digital display controller. Touch screen control, automatic parameter adjustment, and clear operation interface can improve cutting efficiency and reduce setup time.

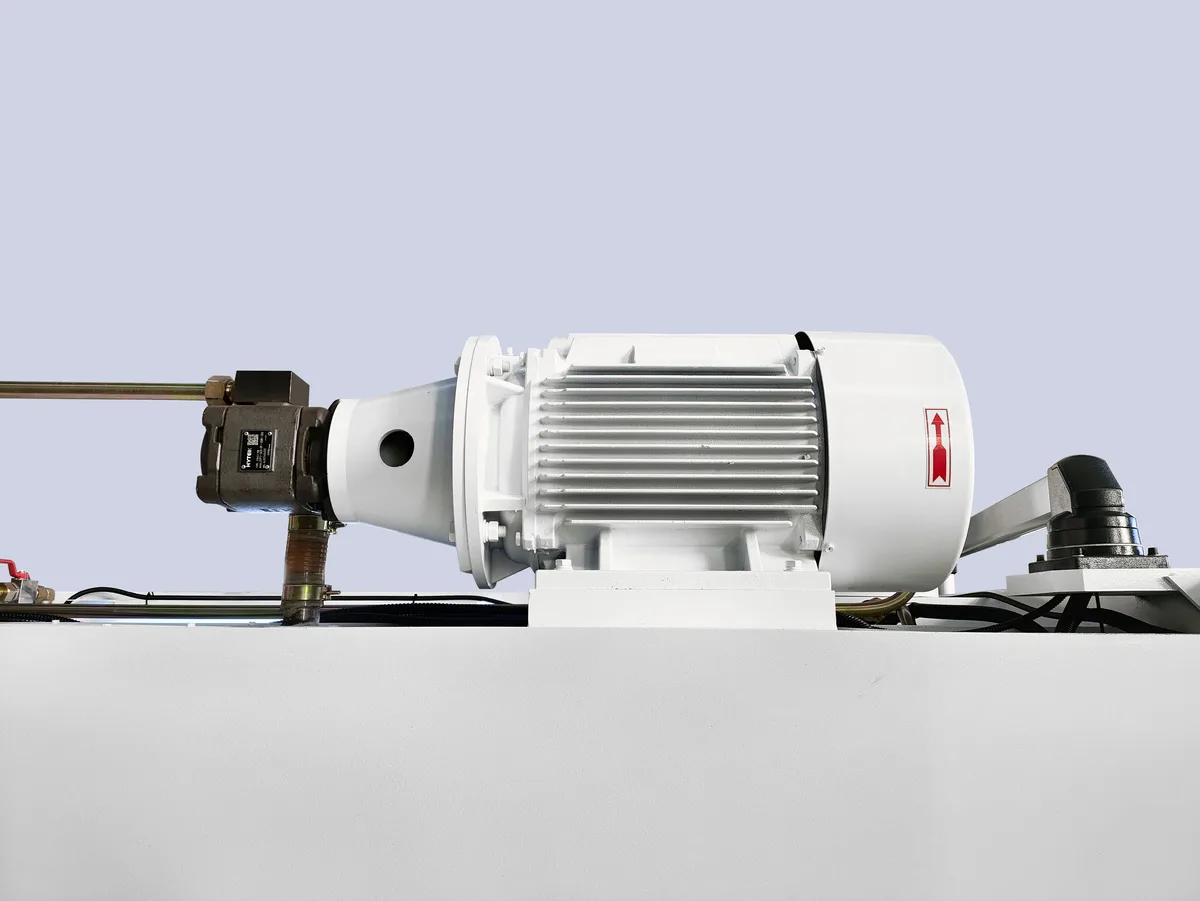

Motor

The main motor provides stable driving power for hydraulic cutting operation. It should be selected according to plate thickness, cutting width, production frequency, and local electrical requirements.

Voltage customization can be arranged for different markets, such as 3-phase 220V, 380V, 415V, or other regional standards. A properly matched motor supports reliable daily operation and reduces installation adaptation work.

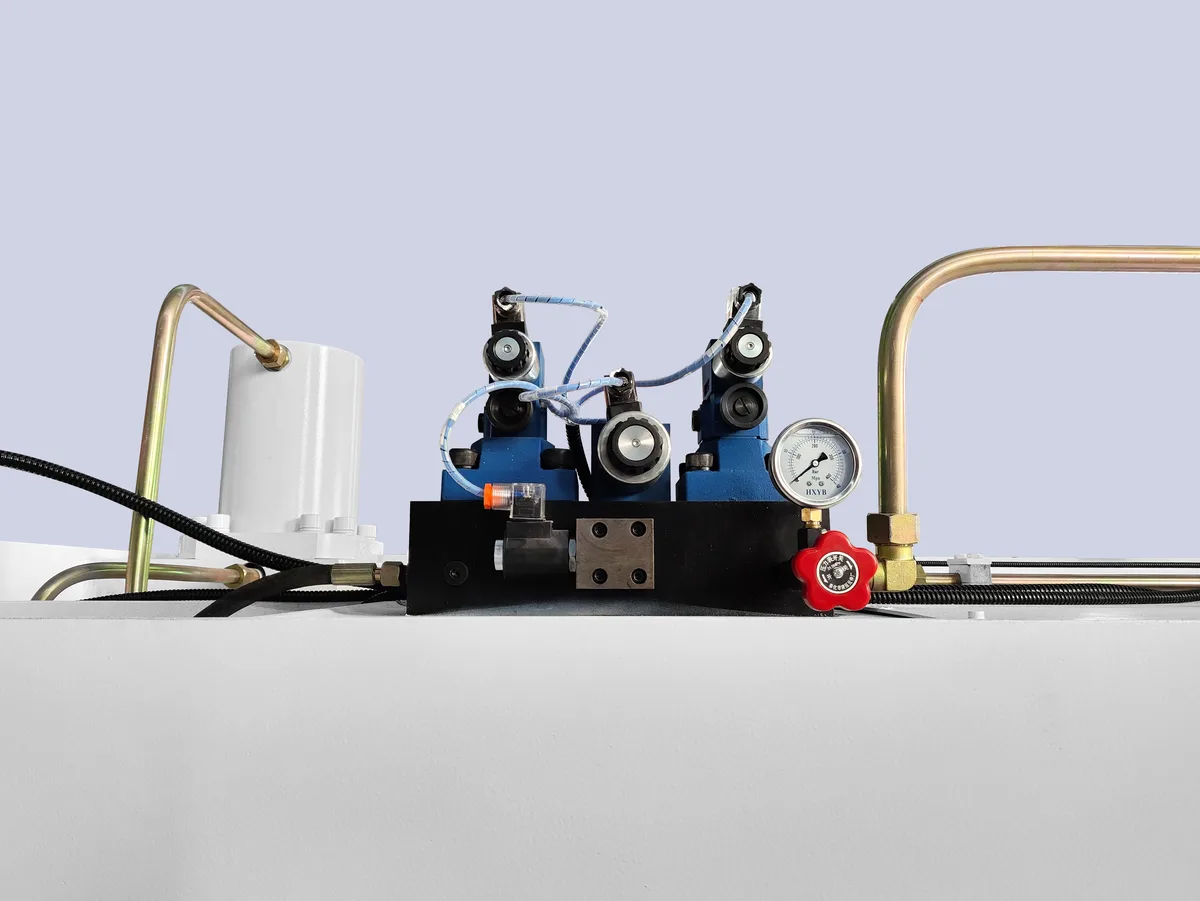

Hydraulic Valve

The hydraulic valve block controls oil flow, pressure, and blade beam movement during the shearing cycle. Stable valve performance helps the blade beam move smoothly and supports consistent cutting action.

Oil pressure overload protection, reliable sealing, and real-time pressure monitoring help reduce leakage, valve jamming, and abnormal pressure fluctuation. This improves machine safety and long-term hydraulic stability.

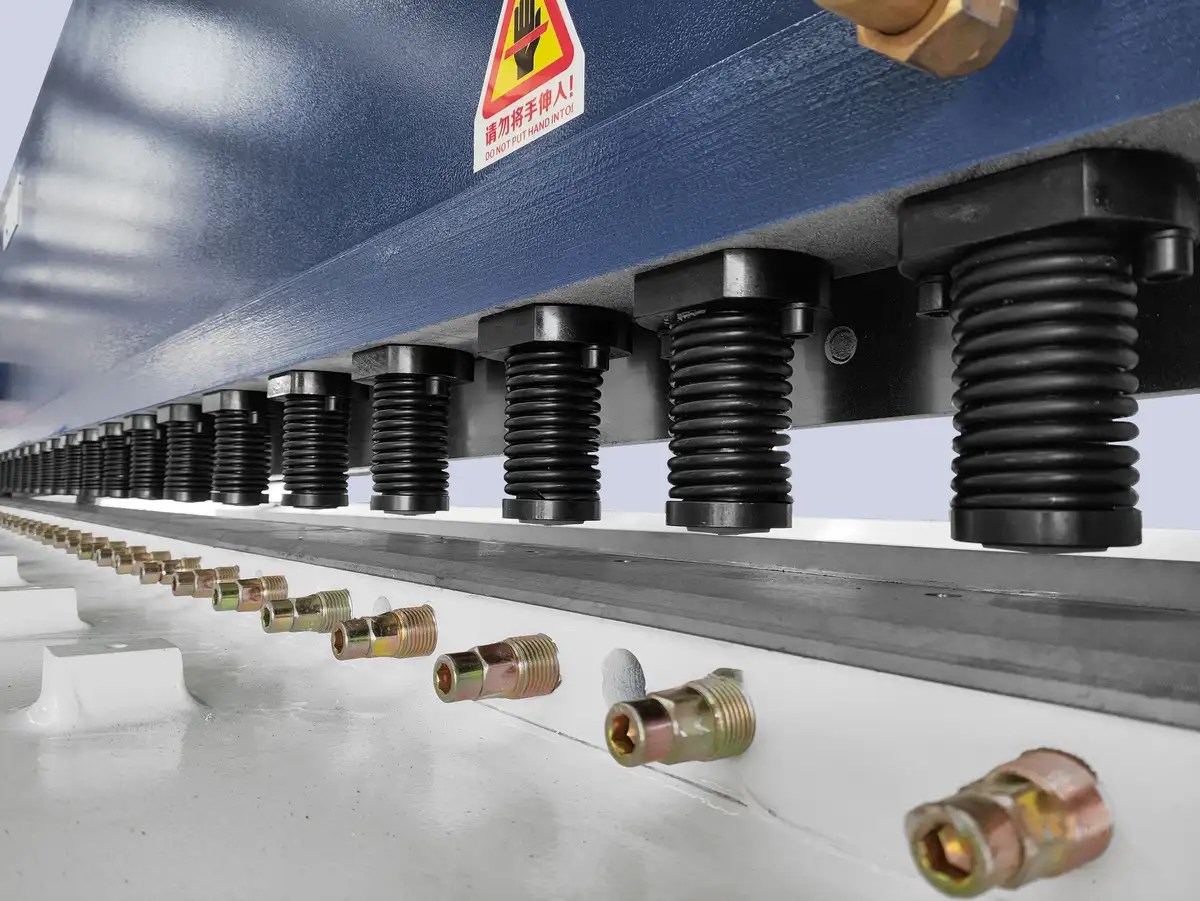

Feeding Port

The feeding port is designed for safe and convenient sheet feeding. Its opening height can be adjusted according to sheet thickness, helping operators feed plates smoothly while keeping the cutting area protected.

Front fences, side guards, and adjustable feeding components help improve operator safety and sheet alignment. A practical feeding structure is especially important when processing large plates or repeated cutting batches.

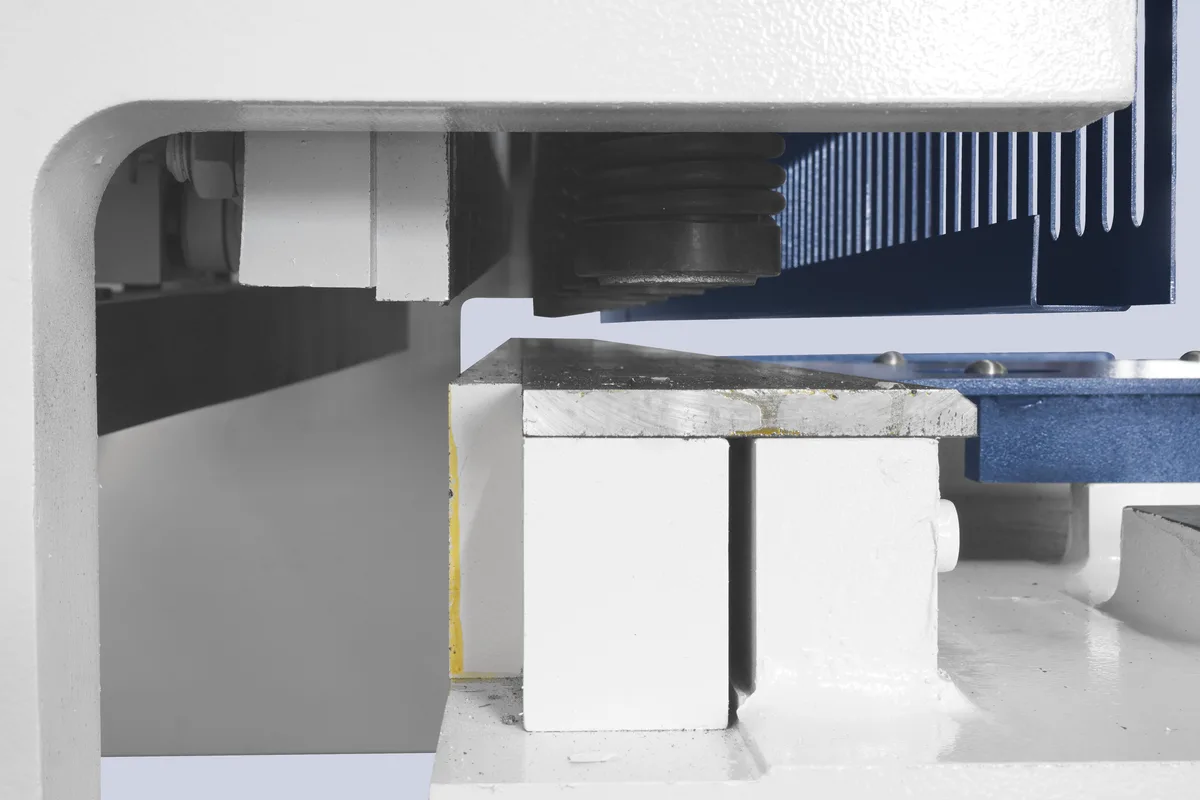

Cutting Line Illumination

Cutting line illumination helps operators align marked sheets before shearing. It improves visual reference during manual positioning and supports more accurate cutting for marked workpieces.

The blade holder stroke can be adjusted according to cutting length and production requirements. Proper stroke adjustment reduces unnecessary movement and improves cutting efficiency for shorter sheets.

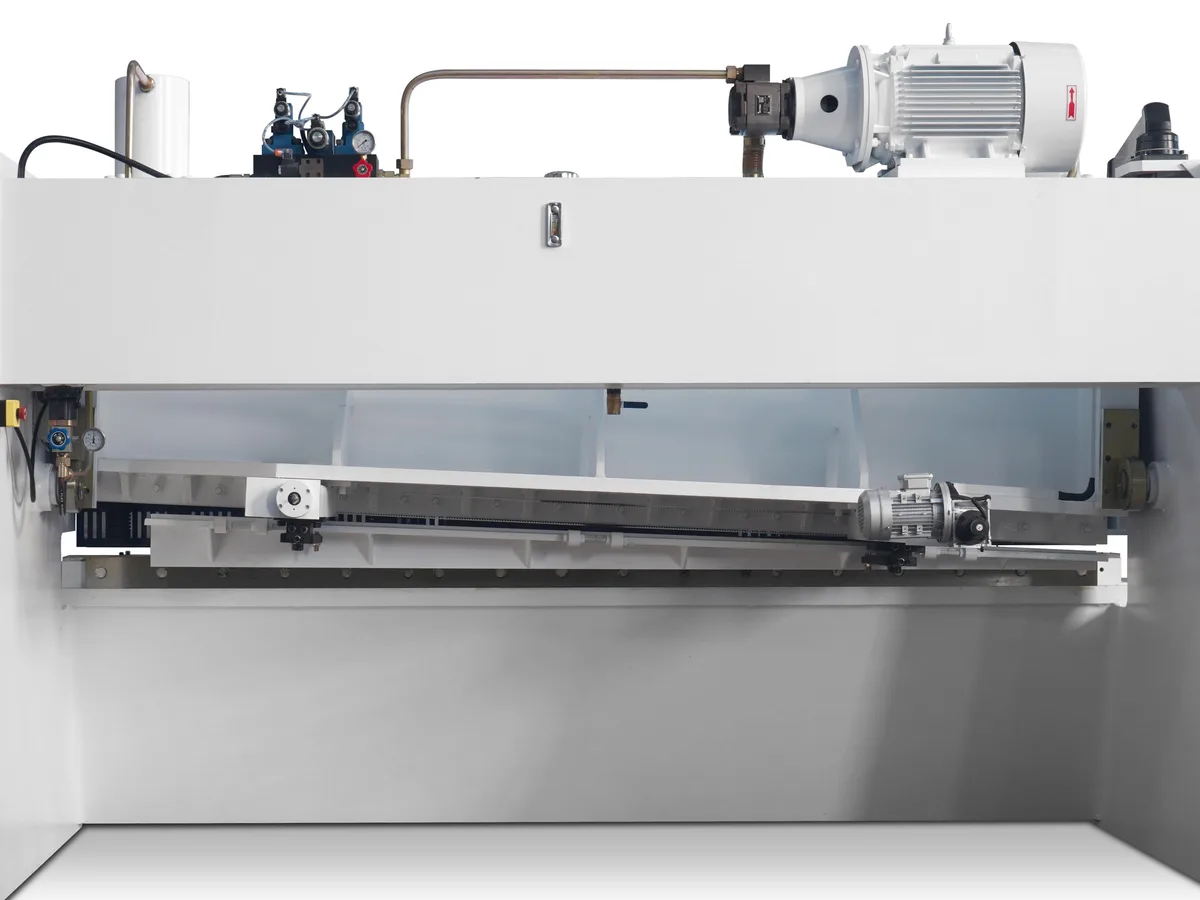

Backgauge

The backgauge positions the sheet before cutting and directly affects repeat cutting accuracy. A stable backgauge system helps maintain consistent cutting width across repeated parts.

Optional rear support can hold thin sheets during cutting, helping prevent sagging and improving cut quality. Rear light curtain protection can also be selected to improve personnel safety during operation.

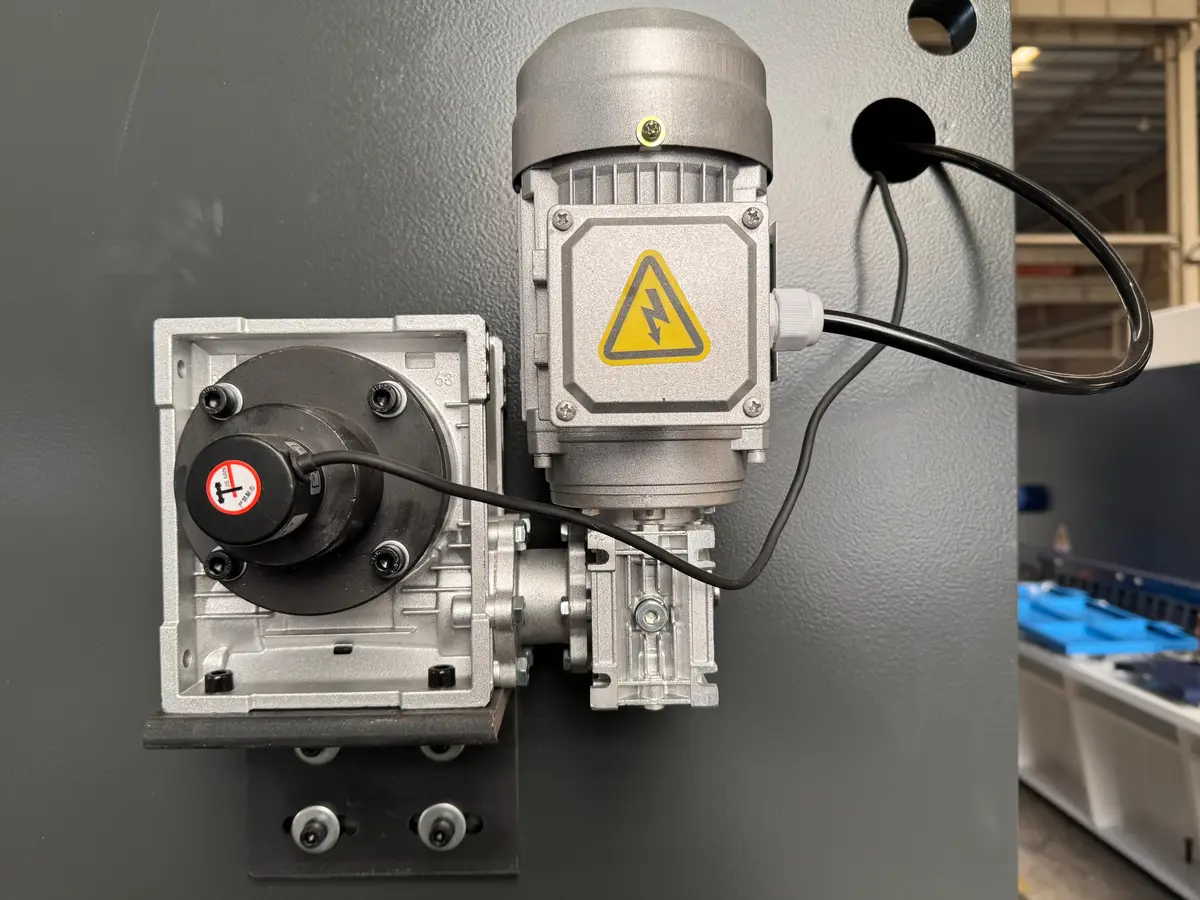

Motorized Cutting Angle Adjustment

Motorized cutting angle adjustment allows the shearing angle to be set according to material thickness and cutting requirements. This reduces manual adjustment work and improves setup efficiency.

A suitable cutting angle helps reduce sheet distortion, improve edge quality, and lower cutting resistance. This function is useful when the workshop frequently changes material thickness.

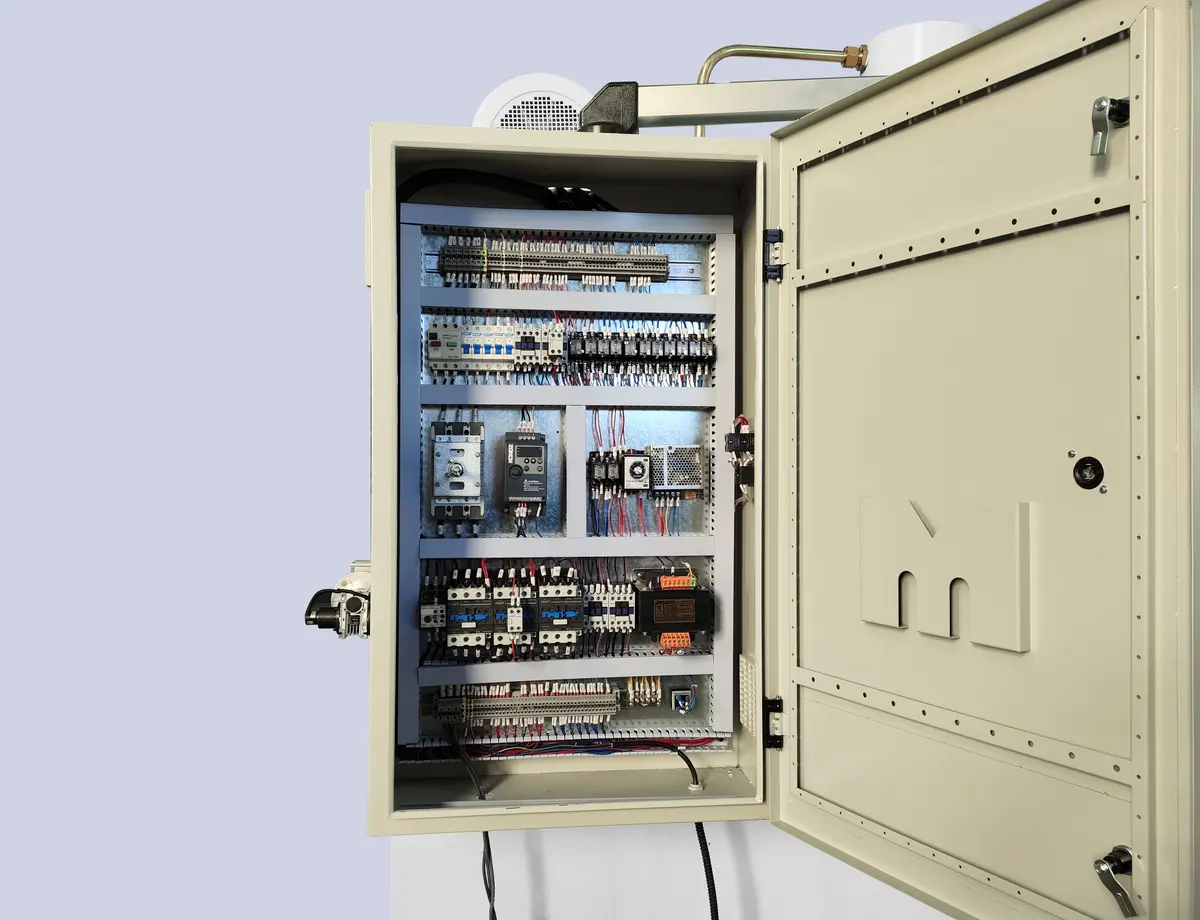

Electrical Components

Reliable electrical components support stable control signal transmission, safe machine operation, and long service life. A clear cabinet layout also makes daily inspection and maintenance easier.

Electrical configuration should be matched with the controller, motor, hydraulic system, safety devices, and local voltage standards. Stable electrical performance helps reduce downtime and improve production reliability.

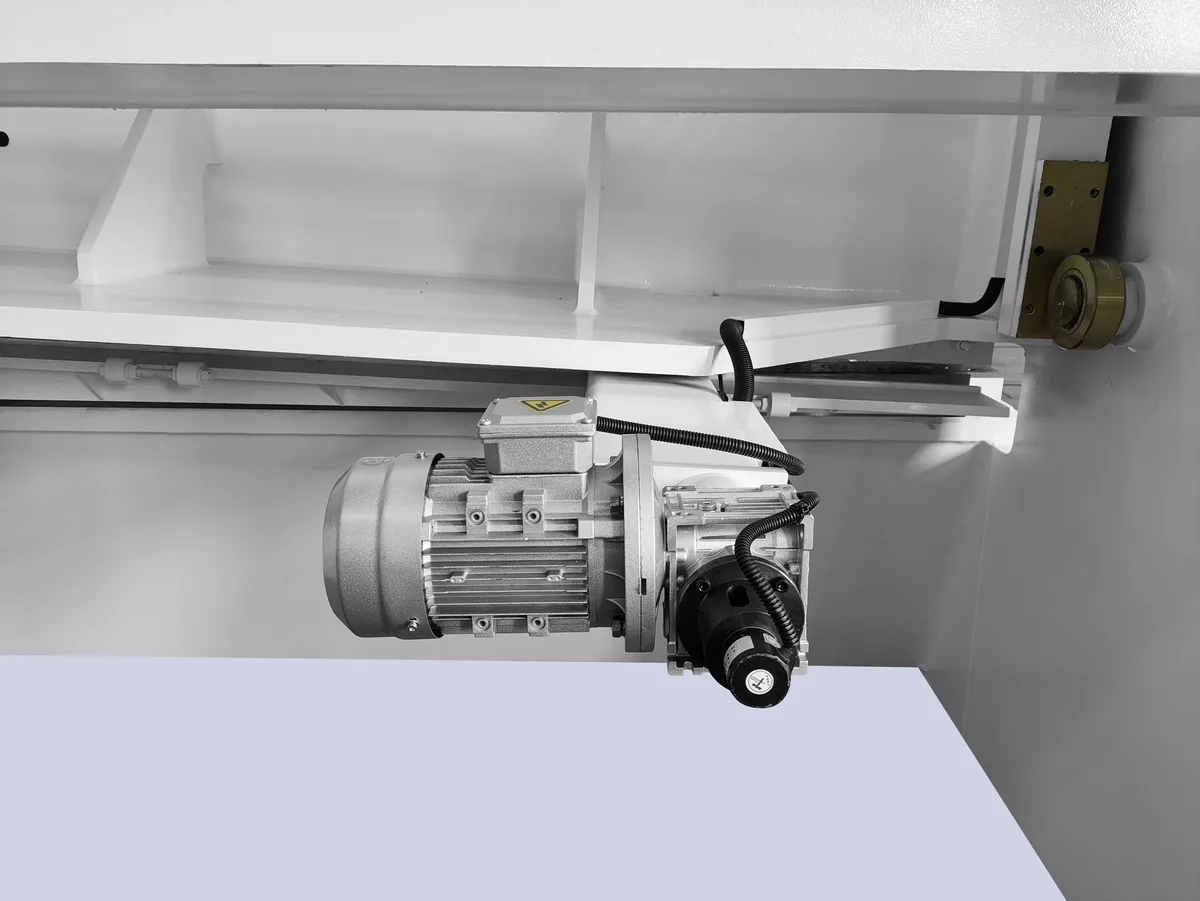

Servo Motor

The servo motor can be used for precise backgauge positioning and fast response during automatic cutting preparation. It improves positioning speed and repeat accuracy compared with basic drive systems.

For production that requires frequent size changes, servo-driven positioning helps reduce setup time and improves cutting efficiency across different sheet sizes.

Model Parameter Table

Model

Capacity

Working Size

Control & Speed

Installation Size

30T/1600

Nominal Force: 630 KN
Bending Length: 2500 mm

Vertical Distance: 2000 mm
Throat Depth: 350 mm
Stroke: 150 mm
Max. Opening: 350 mm

Main Power: 5 kW
Axes: 4+1+2 (Y1, Y2, X, R) + V + manual Z1/Z2
Compensation: Motorized
X-travel: 600 mm
X-speed: 200mm/s

Overall Length: 3100 mm
Overall Width: 1500 mm
Overall Height: 2300 mm
Approx. Weight: 5.8 Ton

40T/1600

Nominal Force: 1000 KN
Bending Length: 3200 mm

Vertical Distance: 2700 mm
Throat Depth: 400 mm
Stroke: 200 mm
Max. Opening: 420 mm

Main Power: 8.7 kW
Axes: 4+1+2 (Y1, Y2, X, R) + V + manual Z1/Z2
Compensation: Motorized
X-travel: 600 mm
X-speed: 200mm/s

Overall Length: 3700 mm
Overall Width: 1600 mm
Overall Height: 2500 mm
Approx. Weight: 8.5 Ton

40T/2500

Nominal Force: 1000 KN
Bending Length: 4000 mm

Vertical Distance: 3500 mm
Throat Depth: 400 mm
Stroke: 200 mm
Max. Opening: 420 mm

Main Power: 8.7 kW
Axes: 4+1+2 (Y1, Y2, X, R) + V + manual Z1/Z2
Compensation: Motorized
X-travel: 600 mm
X-speed: 200mm/s

Overall Length: 4500 mm
Overall Width: 1600 mm
Overall Height: 2500 mm
Approx. Weight: 10 Ton

63T/2500

Nominal Force: 1250 KN
Bending Length: 3200 mm

Vertical Distance: 2700 mm
Throat Depth: 400 mm
Stroke: 200 mm
Max. Opening: 420 mm

Main Power: 10.8 kW
Axes: 4+1+2 (Y1, Y2, X, R) + V + manual Z1/Z2
Compensation: Motorized
X-travel: 600 mm
X-speed: 200mm/s

Overall Length: 3700 mm
Overall Width: 1600 mm
Overall Height: 2500 mm
Approx. Weight: 9.5 Ton

63T/3200

Nominal Force: 1250 KN
Bending Length: 4000 mm

Vertical Distance: 3500 mm
Throat Depth: 400 mm
Stroke: 200 mm
Max. Opening: 420 mm

Main Power: 10.8 kW
Axes: 4+1+2 (Y1, Y2, X, R) + V + manual Z1/Z2
Compensation: Motorized
X-travel: 600 mm
X-speed: 200mm/s

Overall Length: 4500 mm
Overall Width: 1600 mm
Overall Height: 2500 mm
Approx. Weight: 12.5 Ton

80T/2500

Nominal Force: 1600 KN
Bending Length: 3200 mm

Vertical Distance: 2700 mm
Throat Depth: 400 mm
Stroke: 200 mm
Max. Opening: 420 mm

Main Power: 13.2 kW
Axes: 4+1+2 (Y1, Y2, X, R) + V + manual Z1/Z2
Compensation: Motorized
X-travel: 600 mm
X-speed: 200mm/s

Overall Length: 3700 mm
Overall Width: 1650 mm
Overall Height: 2600 mm
Approx. Weight: 11 Ton

80T/3200

Nominal Force: 1600 KN
Bending Length: 4000 mm

Vertical Distance: 3500 mm
Throat Depth: 400 mm
Stroke: 200 mm
Max. Opening: 420 mm

Main Power: 13.2 kW
Axes: 4+1+2 (Y1, Y2, X, R) + V + manual Z1/Z2
Compensation: Motorized
X-travel: 600 mm
X-speed: 200mm/s

Overall Length: 4500 mm
Overall Width: 1650 mm
Overall Height: 2600 mm
Approx. Weight: 12.5 Ton

200T/3200

Nominal Force: 2000 KN
Bending Length: 3200 mm

Vertical Distance: 2700 mm
Throat Depth: 400 mm
Stroke: 200 mm
Max. Opening: 420 mm

Main Power: 13.2 kW
Axes: 4+1+2 (Y1, Y2, X, R) + V + manual Z1/Z2
Compensation: Motorized
X-travel: 600 mm
X-speed: 200mm/s

Overall Length: 3700 mm
Overall Width: 1700 mm
Overall Height: 2700 mm
Approx. Weight: 13.5 Ton

200T/4000

Nominal Force: 2000 KN
Bending Length: 4000 mm

Vertical Distance: 3500 mm
Throat Depth: 400 mm
Stroke: 200 mm
Max. Opening: 420 mm

Main Power: 13.2 kW
Axes: 4+1+2 (Y1, Y2, X, R) + V + manual Z1/Z2
Compensation: Motorized
X-travel: 600 mm
X-speed: 200mm/s

Overall Length: 4500 mm
Overall Width: 1700 mm
Overall Height: 2700 mm
Approx. Weight: 14 Ton

250t/3200

Nominal Force: 2500 KN
Bending Length: 3200 mm

Vertical Distance: 2700 mm
Throat Depth: 400 mm
Stroke: 200 mm
Max. Opening: 420 mm

Main Power: 16.7 kW
Axes: 4+1 (Y1, Y2, X, R) + V
Compensation: Motorized
X-travel: 600 mm
X-speed: 200mm/s

Overall Length: 3700 mm
Overall Width: 1700 mm
Overall Height: 2760 mm
Approx. Weight: 15.5 Ton

300T/3200

Nominal Force: 3000 KN
Bending Length: 3200 mm

Vertical Distance: 2700 mm
Throat Depth: 400 mm
Stroke: 300 mm
Max. Opening: 500 mm

Main Power: 21.4 kW
Axes: 4+1 (Y1, Y2, X, R) + V
Compensation: Motorized
X-travel: 600 mm
X-speed: 200mm/s

Overall Length: 3700 mm
Overall Width: 1800 mm
Overall Height: 2900 mm
Approx. Weight: 16.8 Ton

400T/4000

Nominal Force: 4000 KN
Bending Length: 4000 mm

Vertical Distance: 3100 mm
Throat Depth: 400 mm
Stroke: 300 mm
Max. Opening: 600 mm

Main Power: 26.9 kW
Axes: 4+1 (Y1, Y2, X, R) + V
Compensation: Motorized
X-travel: 600 mm
X-speed: 200mm/s

Overall Length: 4500 mm
Overall Width: 2450 mm
Overall Height: 3500 mm
Approx. Weight: 31 Ton

500T/6000

Nominal Force: 5000 KN
Bending Length: 5000 mm

Vertical Distance: 4500 mm
Throat Depth: 500 mm
Stroke: 300 mm
Max. Opening: 600 mm

Main Power: 37 kW
Axes: 3+1 (Y1, Y2, X) + V
Compensation: Motorized
X-travel: 600 mm
X-speed: 200mm/s

Overall Length: 6500 mm
Overall Width: 2800 mm
Overall Height: 4500 mm
Approx. Weight: 50 Ton

600T/6000

Nominal Force: 6000 KN
Bending Length: 6000 mm

Vertical Distance: 4900 mm
Throat Depth: 500 mm
Stroke: 300 mm
Max. Opening: 600 mm

Main Power: 45 kW
Axes: 3+1 (Y1, Y2, X) + V
Compensation: Motorized
X-travel: 800 mm
X-speed: 200mm/s

Overall Length: 6500 mm
Overall Width: 2900 mm
Overall Height: 5100 mm
Approx. Weight: 60 Ton

800T/6000

Nominal Force: 8000 KN
Bending Length: 6000 mm

Vertical Distance: 4200 mm
Throat Depth: 600 mm
Stroke: 400 mm
Max. Opening: 800 mm

Main Power: 55 kW
Axes: 3+1 (Y1, Y2, X) + V
Compensation: Motorized
X-travel: 800 mm
X-speed: 200mm/s

Overall Length: 6500 mm
Overall Width: 2950 mm
Overall Height: 5300 mm
Approx. Weight: 90 Ton

800T/8000

Nominal Force: 8000 KN
Bending Length: 8000 mm

Vertical Distance: 6200 mm
Throat Depth: 600 mm
Stroke: 400 mm
Max. Opening: 800 mm

Main Power: 55 kW
Axes: 3+1 (Y1, Y2, X) + V
Compensation: Motorized
X-travel: 1000 mm
X-speed: 200mm/s

Overall Length: 8500 mm
Overall Width: 2950 mm
Overall Height: 5900 mm
Approx. Weight: 120 Ton

Parameters change without notice. Final model configuration, controller, voltage, blade material, safety protection, rear support, and quotation data should be confirmed according to the actual order.

Related PREF Group Pages

FAQs

What information should I send before choosing a CNC Press Brake Machine?

Send material type, thickness range, part drawings, required tolerance, daily output target, workshop layout, voltage requirement, and any existing process photos or videos. PREF Group can use this information to recommend a practical configuration.

Can PREF Group customize the CNC Press Brake Machine?

Yes. The final machine can be discussed according to working size, capacity, controller preference, safety system, tooling, automation, voltage, and shipping requirements.

Are the listed parameters final order specifications?

The parameter tables are used for model selection and comparison. Final order specifications should be confirmed with PREF Group before quotation, production, or publishing a final datasheet.

How do I know if this product is the right machine category?

Start from the part drawing and the production bottleneck. If the main issue is bending, cutting, welding, grooving, punching, or spare parts compatibility, PREF Group can compare the related product category and recommend the better fit.
