WILA Smart Tooling Solutions

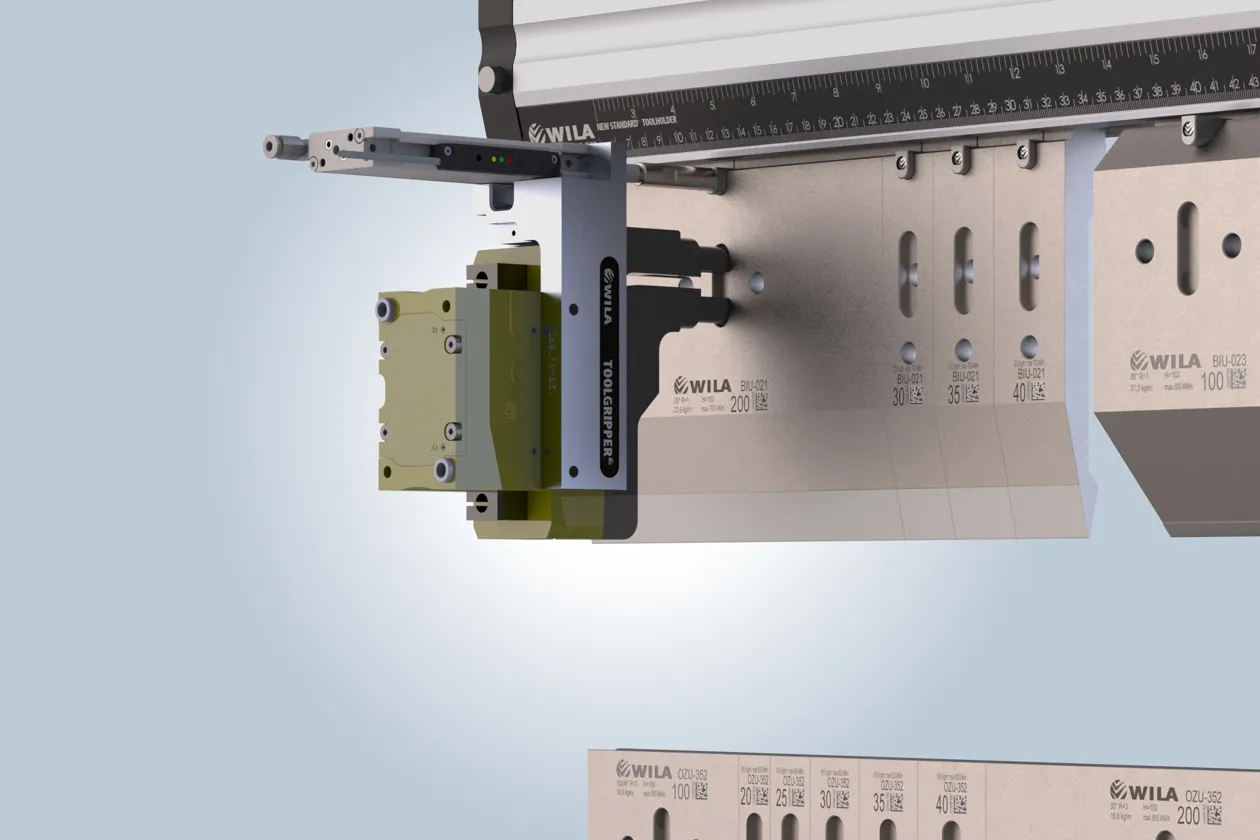

WILA Smart Tooling Automation

WILA Smart Tooling Solutions are designed for press brake users who need faster setup, safer tool handling, and more consistent bending accuracy. The system combines precision tooling, intelligent tool location, quick clamping, and automation-ready tool management to reduce manual adjustment during frequent job changeovers.

  • Supports assisted or automatic tool change workflows for high-mix sheet metal production.
  • Reduces setup time when operators frequently switch between different bending jobs.
  • Helps improve tooling safety, positioning repeatability, and production consistency.
  • Suitable for CNC press brakes that require smarter tooling management and future automation upgrades.
Get a Quote

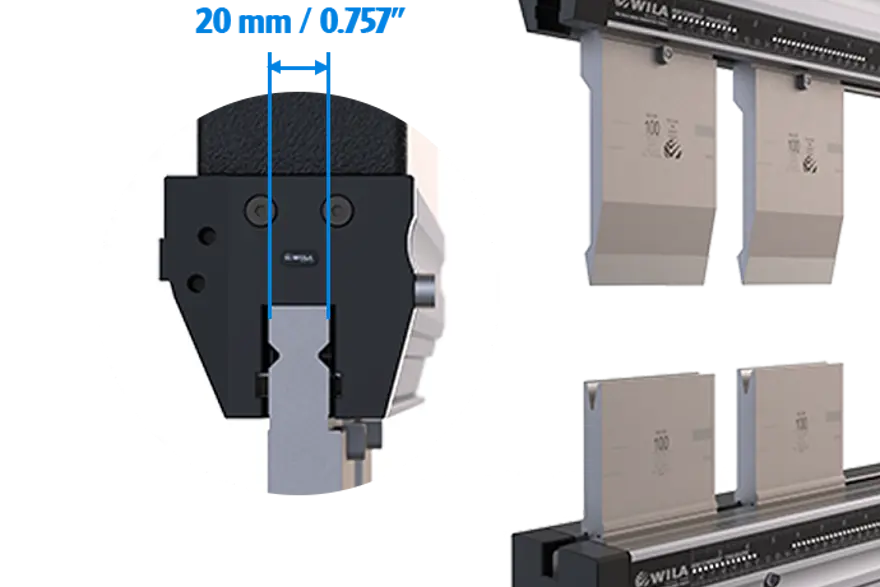

WILA New Standard Tool Holders

WILA New Standard Tool Holders are used to improve upper tool clamping speed, alignment accuracy, and operator safety. Compared with conventional manual clamping, this type of tool holder allows faster vertical tool loading and more reliable tool seating, especially when small-batch or multi-batch bending work requires frequent die changes.

  • Fast tool clamping helps shorten non-production setup time.
  • Precision alignment supports more stable bending angle control.
  • Safety-oriented tool locking reduces the risk of accidental tool drop.
  • Suitable for upgrading CNC press brakes with higher tooling efficiency requirements.
Get a Quote

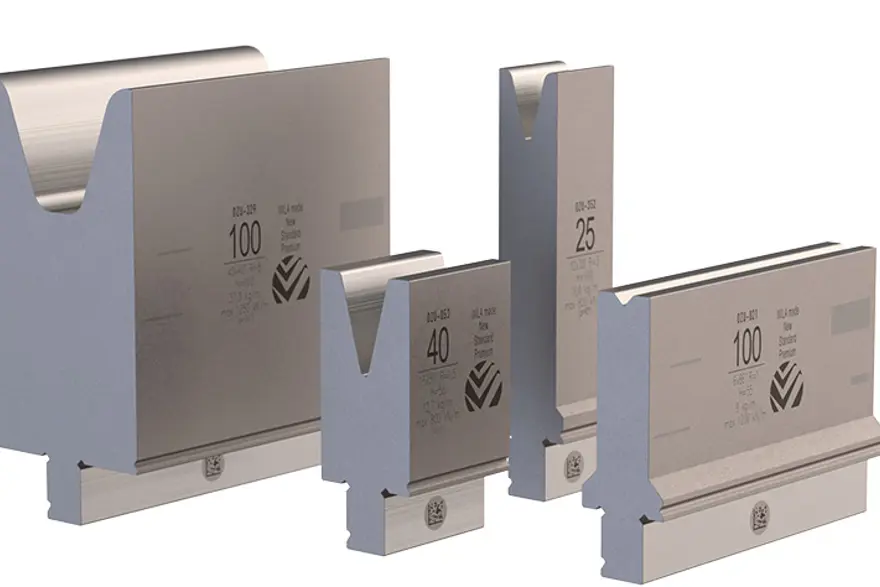

WILA New Standard Tooling

WILA New Standard Tooling is built for precision bending applications where tool accuracy, hardness, and repeatable installation are important. The tooling system is suitable for workshops that need reliable segmented tooling, stable flange quality, and long service life under regular production conditions.

  • Modular tooling lengths make it easier to match different workpiece sizes.
  • Precision-ground tooling helps maintain consistent bending results.
  • Hardened contact surfaces improve wear resistance during long-term use.
  • Recommended for customers who need higher accuracy than ordinary standard tooling.
Get a Quote

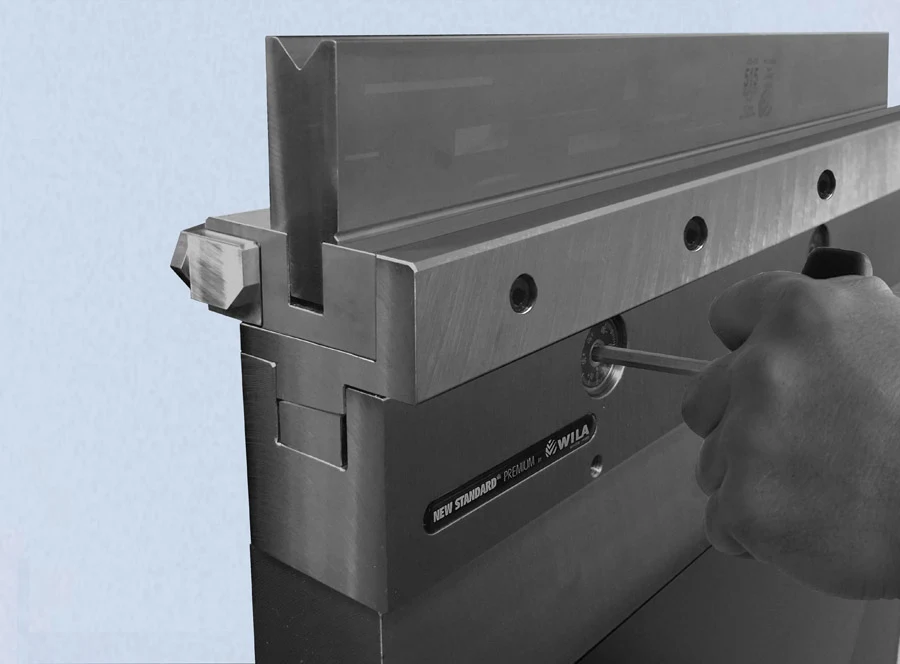

WILA New Standard Crowning System

he WILA crowning system compensates for machine deflection during bending. When the ram and worktable deform under load, crowning helps keep the bending angle more consistent across the full bending length. This is especially important for long parts, thick plates, and production work that requires stable straightness.

  • Helps reduce angle variation from the center to both ends of the workpiece.
  • Improves bending consistency on long sheet metal parts.
  • Can be matched with CNC control for more convenient compensation adjustment.
  • Suitable for press brake upgrades where bending accuracy is affected by frame deflection.
Get a Quote
