Our fiber laser cutting machine deliver high speed and high precision metal cutting for stainless steel, carbon steel and aluminum sheets across industrial applications.
An exchange table laser cutting machine reduces loading and unloading downtime by allowing one table to be prepared while the other table is cutting. It is suited to factories where cutting output, operator efficiency, and continuous production matter.
Main Features
The new enclosed design and fast dual-worktable exchange allow processing and unloading at the same time.
It features fast speed, small kerf, smooth cutting section, easy operation, and low energy consumption.
It is suitable for large-volume continuous processing and highlights cutting competitiveness.
Share:

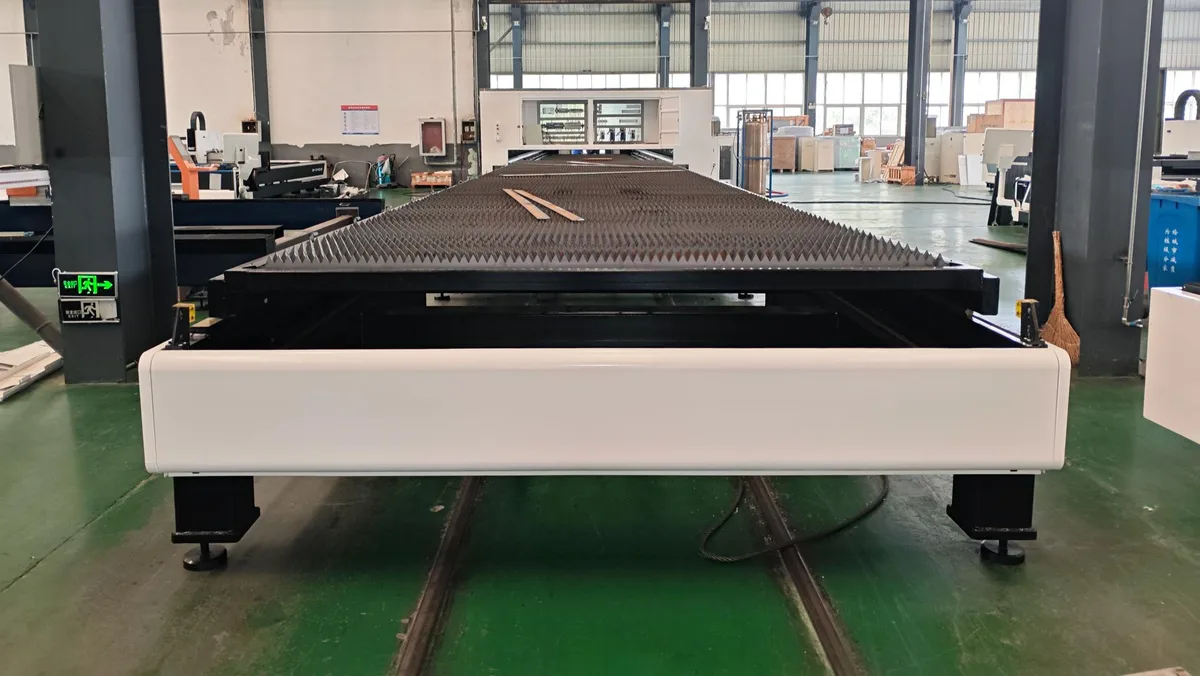

The mechanical bed uses a reinforced welded structure designed for stable laser cutting operation. Multiple rectangular tube sections and internal stiffeners improve strength, tensile resistance, and vibration control during high-speed movement.
The bed can be treated with high-temperature annealing, shot blasting, and stress relief processing to reduce internal stress and limit long-term deformation. For exchange table laser cutting machines, bed stability is especially important because the machine must maintain cutting accuracy while supporting fast table exchange and continuous production.

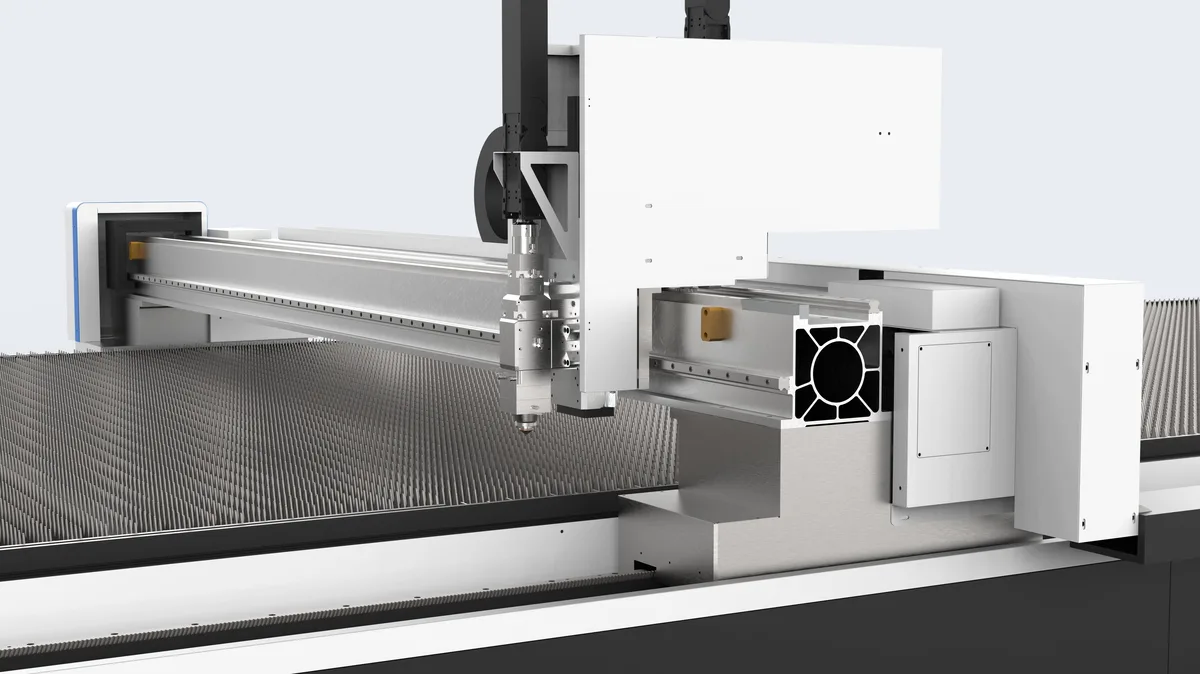

The beam is designed to combine high rigidity with lightweight motion performance. A low-inertia beam helps the machine achieve faster acceleration and smoother dynamic response during contour cutting.
Finite element analysis can be used to optimize beam structure, reduce vibration, and improve motion stability. This supports higher cutting speed while maintaining accurate positioning and clean cutting edges.

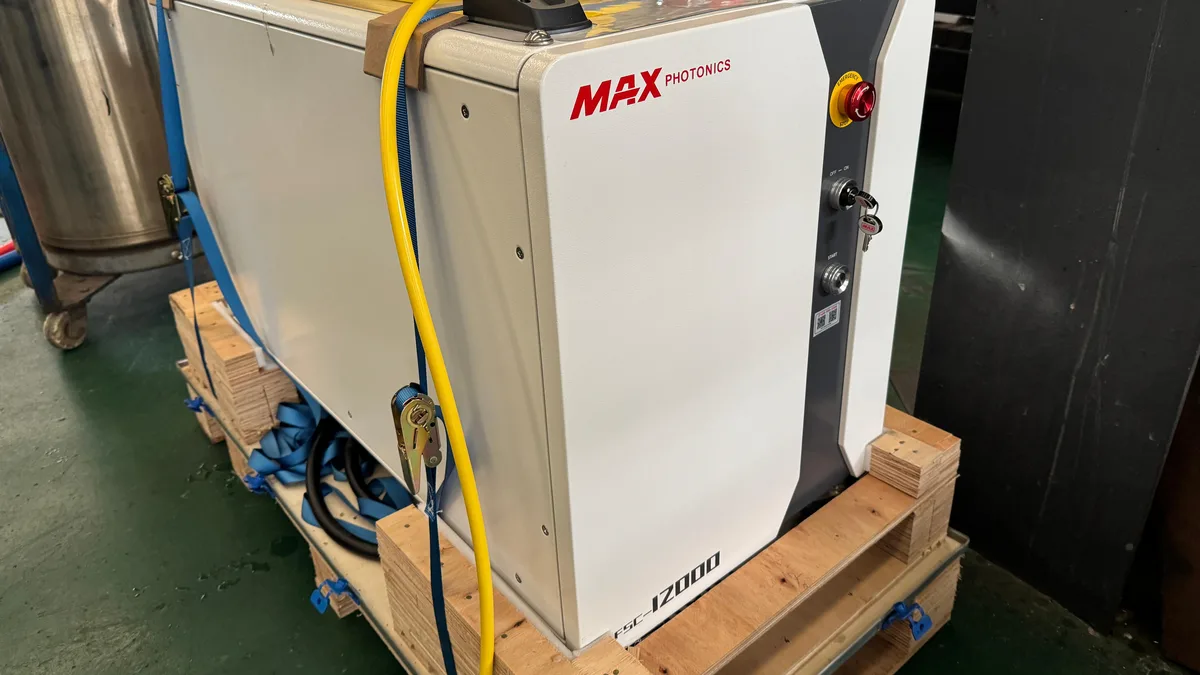

The fiber laser source provides the main cutting energy and can be selected according to material type, plate thickness, cutting speed, and production capacity. Different power levels allow the machine to handle both thin sheet cutting and heavier plate applications.
High-quality laser sources offer stable beam quality, high electro-optical conversion efficiency, compact structure, and convenient maintenance. A reliable source improves piercing performance, cutting speed, and long-term production stability.

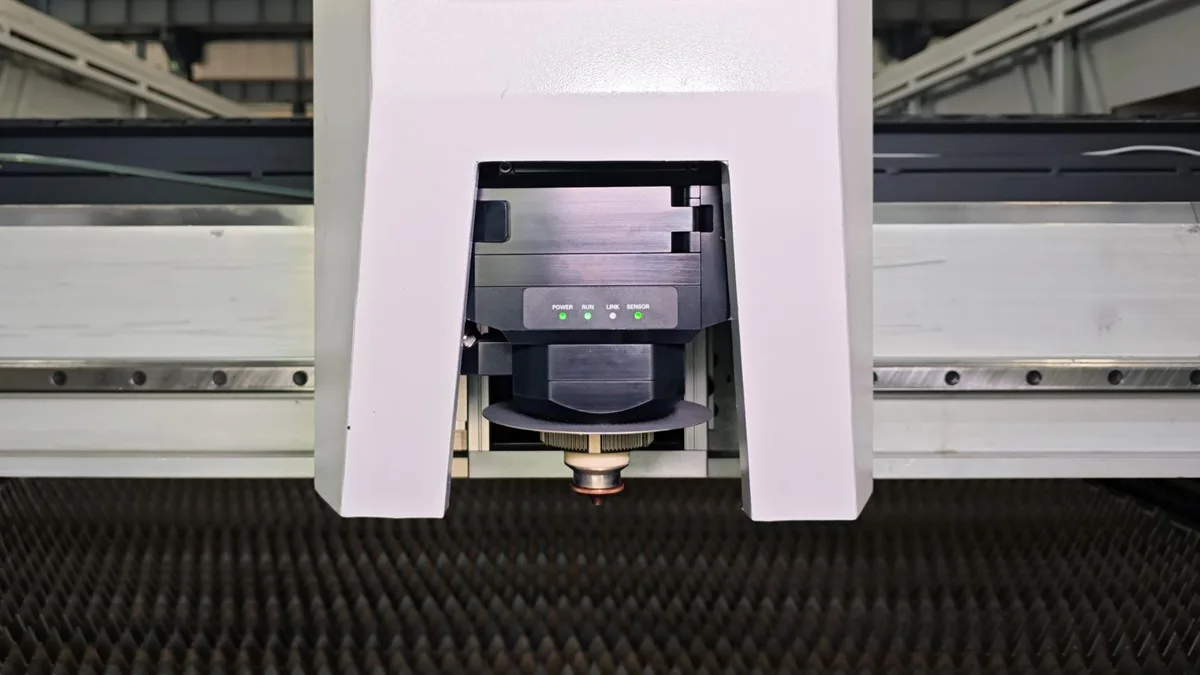

The auto-focusing cutting head adjusts focus position according to material thickness and process requirements. This reduces manual setup time and helps maintain stable cutting quality across different materials.
Anti-collision protection and stable optical design help protect the cutting head during high-speed cutting. The cutting head works with the control system to improve piercing, kerf quality, and cutting consistency.

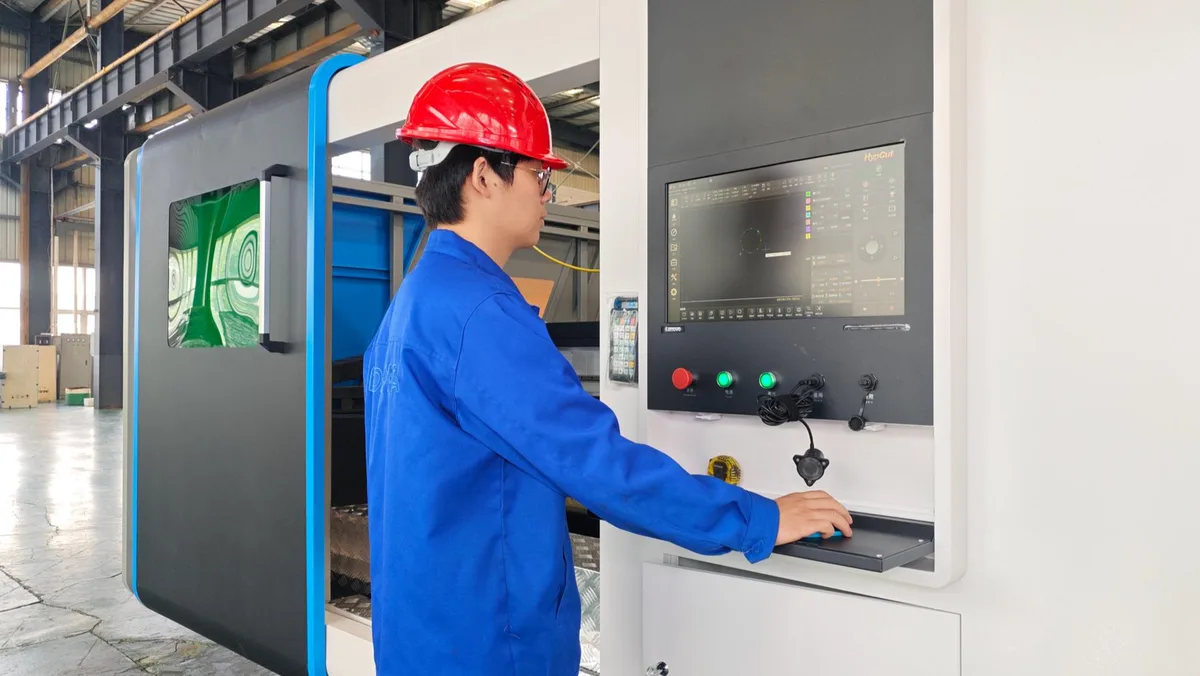

The control system manages cutting path, nesting files, speed control, gas control, piercing parameters, and process databases. It helps operators prepare cutting jobs quickly and run production with stable motion control.
Professional fiber laser cutting software supports power-based speed adjustment, imported linear speed settings, and cutting process libraries. For exchange table machines, control coordination also supports efficient loading, unloading, and cutting-cycle management.

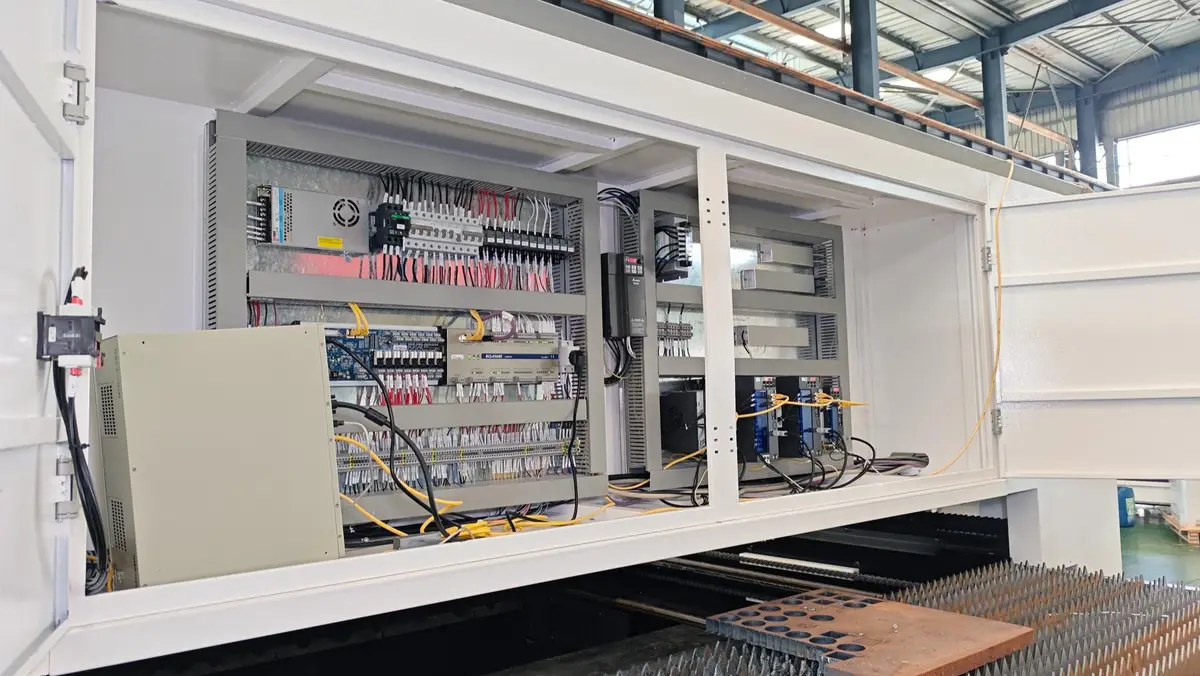

The electrical system integrates the CNC controller, servo drives, power supply modules, relays, circuit protection components, signal terminals, and cabinet cooling devices in a structured layout. A clean electrical cabinet design helps reduce interference, improve heat dissipation, and make daily inspection or maintenance more efficient.
For a fiber laser cutting machine, stable electrical control is directly related to cutting path accuracy, servo response, laser output coordination, gas control, safety interlock, and continuous production reliability. Proper wiring, reliable grounding, and protected electrical components help the machine maintain stable performance during high-speed cutting and long working shifts.

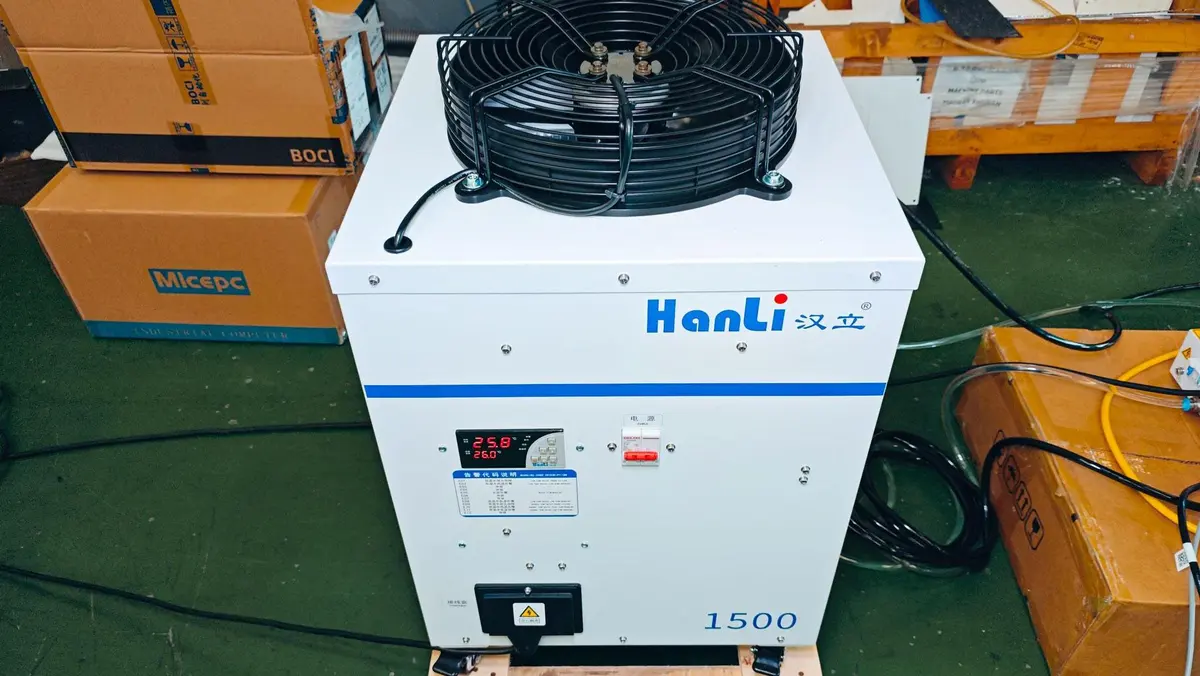

The water chiller controls the operating temperature of the laser source and optical components. Stable cooling helps maintain laser output, protect optical parts, and improve long-term cutting reliability.
Safety functions such as over-temperature alarm, flow protection, and water-level monitoring help protect the laser system. The chiller should be matched with laser power and local workshop conditions.

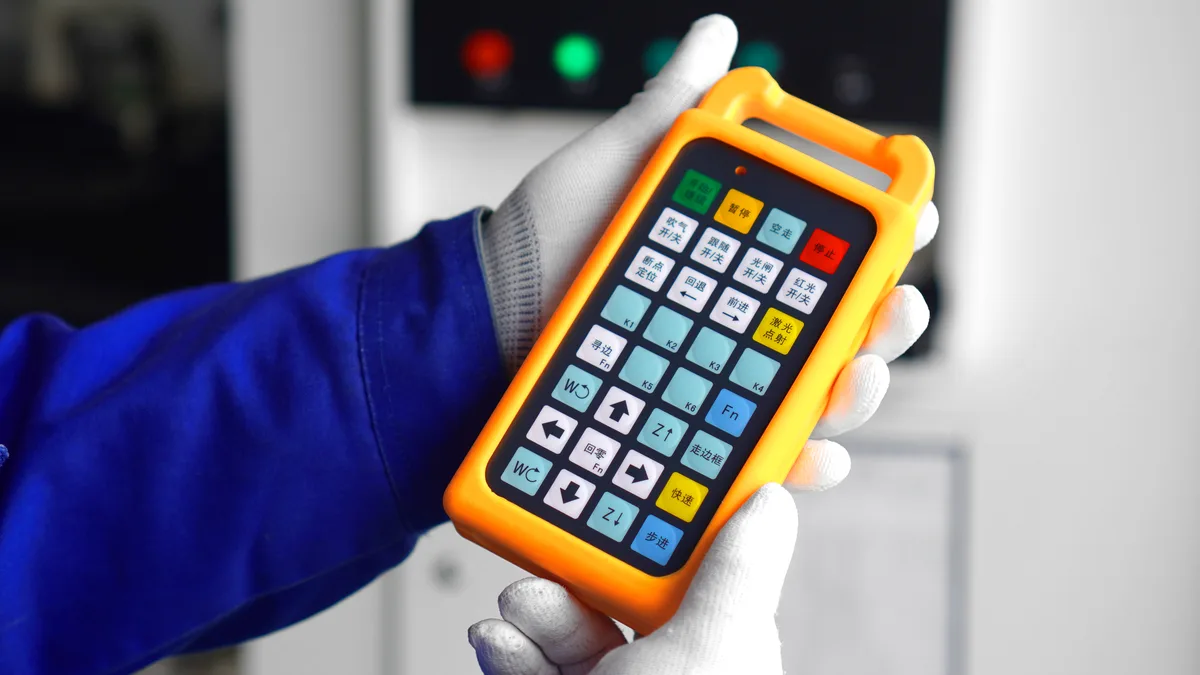

The handheld remote controller allows the operator to control key laser cutting machine movements and auxiliary functions from a convenient working position. Common functions can include axis jogging, edge finding, return operation, frame walking, laser emission confirmation, speed adjustment, and auxiliary gas or light control depending on the final machine configuration.
This remote control improves setup efficiency during plate loading, nozzle alignment, edge finding, and test cutting. It helps the operator stay close to the cutting area while keeping machine movement under direct control, making daily operation more flexible, safer, and easier to manage.
Nominal Force: 630 KN
Bending Length: 2500 mm
Vertical Distance: 2000 mm
Throat Depth: 350 mm
Stroke: 150 mm
Max. Opening: 350 mm
Main Power: 5 kW
Axes: 4+1+2 (Y1, Y2, X, R) + V + manual Z1/Z2
Compensation: Motorized
X-travel: 600 mm
X-speed: 200mm/s
Overall Length: 3100 mm
Overall Width: 1500 mm
Overall Height: 2300 mm
Approx. Weight: 5.8 Ton
Nominal Force: 1000 KN
Bending Length: 3200 mm
Vertical Distance: 2700 mm
Throat Depth: 400 mm
Stroke: 200 mm
Max. Opening: 420 mm
Main Power: 8.7 kW
Axes: 4+1+2 (Y1, Y2, X, R) + V + manual Z1/Z2
Compensation: Motorized
X-travel: 600 mm
X-speed: 200mm/s
Overall Length: 3700 mm
Overall Width: 1600 mm
Overall Height: 2500 mm
Approx. Weight: 8.5 Ton
Nominal Force: 1000 KN
Bending Length: 4000 mm
Vertical Distance: 3500 mm
Throat Depth: 400 mm
Stroke: 200 mm
Max. Opening: 420 mm
Main Power: 8.7 kW
Axes: 4+1+2 (Y1, Y2, X, R) + V + manual Z1/Z2
Compensation: Motorized
X-travel: 600 mm
X-speed: 200mm/s
Overall Length: 4500 mm
Overall Width: 1600 mm
Overall Height: 2500 mm
Approx. Weight: 10 Ton
Nominal Force: 1250 KN
Bending Length: 3200 mm
Vertical Distance: 2700 mm
Throat Depth: 400 mm
Stroke: 200 mm
Max. Opening: 420 mm
Main Power: 10.8 kW
Axes: 4+1+2 (Y1, Y2, X, R) + V + manual Z1/Z2
Compensation: Motorized
X-travel: 600 mm
X-speed: 200mm/s
Overall Length: 3700 mm
Overall Width: 1600 mm
Overall Height: 2500 mm
Approx. Weight: 9.5 Ton
Nominal Force: 1250 KN
Bending Length: 4000 mm
Vertical Distance: 3500 mm
Throat Depth: 400 mm
Stroke: 200 mm
Max. Opening: 420 mm
Main Power: 10.8 kW
Axes: 4+1+2 (Y1, Y2, X, R) + V + manual Z1/Z2
Compensation: Motorized
X-travel: 600 mm
X-speed: 200mm/s
Overall Length: 4500 mm
Overall Width: 1600 mm
Overall Height: 2500 mm
Approx. Weight: 12.5 Ton
Nominal Force: 1600 KN
Bending Length: 3200 mm
Vertical Distance: 2700 mm
Throat Depth: 400 mm
Stroke: 200 mm
Max. Opening: 420 mm
Main Power: 13.2 kW
Axes: 4+1+2 (Y1, Y2, X, R) + V + manual Z1/Z2
Compensation: Motorized
X-travel: 600 mm
X-speed: 200mm/s
Overall Length: 3700 mm
Overall Width: 1650 mm
Overall Height: 2600 mm
Approx. Weight: 11 Ton
Nominal Force: 1600 KN
Bending Length: 4000 mm
Vertical Distance: 3500 mm
Throat Depth: 400 mm
Stroke: 200 mm
Max. Opening: 420 mm
Main Power: 13.2 kW
Axes: 4+1+2 (Y1, Y2, X, R) + V + manual Z1/Z2
Compensation: Motorized
X-travel: 600 mm
X-speed: 200mm/s
Overall Length: 4500 mm
Overall Width: 1650 mm
Overall Height: 2600 mm
Approx. Weight: 12.5 Ton
Nominal Force: 2000 KN
Bending Length: 3200 mm
Vertical Distance: 2700 mm
Throat Depth: 400 mm
Stroke: 200 mm
Max. Opening: 420 mm
Main Power: 13.2 kW
Axes: 4+1+2 (Y1, Y2, X, R) + V + manual Z1/Z2
Compensation: Motorized
X-travel: 600 mm
X-speed: 200mm/s
Overall Length: 3700 mm
Overall Width: 1700 mm
Overall Height: 2700 mm
Approx. Weight: 13.5 Ton
Nominal Force: 2000 KN
Bending Length: 4000 mm
Vertical Distance: 3500 mm
Throat Depth: 400 mm
Stroke: 200 mm
Max. Opening: 420 mm
Main Power: 13.2 kW
Axes: 4+1+2 (Y1, Y2, X, R) + V + manual Z1/Z2
Compensation: Motorized
X-travel: 600 mm
X-speed: 200mm/s
Overall Length: 4500 mm
Overall Width: 1700 mm
Overall Height: 2700 mm
Approx. Weight: 14 Ton
Nominal Force: 2500 KN
Bending Length: 3200 mm
Vertical Distance: 2700 mm
Throat Depth: 400 mm
Stroke: 200 mm
Max. Opening: 420 mm
Main Power: 16.7 kW
Axes: 4+1 (Y1, Y2, X, R) + V
Compensation: Motorized
X-travel: 600 mm
X-speed: 200mm/s
Overall Length: 3700 mm
Overall Width: 1700 mm
Overall Height: 2760 mm
Approx. Weight: 15.5 Ton
Nominal Force: 3000 KN
Bending Length: 3200 mm
Vertical Distance: 2700 mm
Throat Depth: 400 mm
Stroke: 300 mm
Max. Opening: 500 mm
Main Power: 21.4 kW
Axes: 4+1 (Y1, Y2, X, R) + V
Compensation: Motorized
X-travel: 600 mm
X-speed: 200mm/s
Overall Length: 3700 mm
Overall Width: 1800 mm
Overall Height: 2900 mm
Approx. Weight: 16.8 Ton
Nominal Force: 4000 KN
Bending Length: 4000 mm
Vertical Distance: 3100 mm
Throat Depth: 400 mm
Stroke: 300 mm
Max. Opening: 600 mm
Main Power: 26.9 kW
Axes: 4+1 (Y1, Y2, X, R) + V
Compensation: Motorized
X-travel: 600 mm
X-speed: 200mm/s
Overall Length: 4500 mm
Overall Width: 2450 mm
Overall Height: 3500 mm
Approx. Weight: 31 Ton
Nominal Force: 5000 KN
Bending Length: 5000 mm
Vertical Distance: 4500 mm
Throat Depth: 500 mm
Stroke: 300 mm
Max. Opening: 600 mm
Main Power: 37 kW
Axes: 3+1 (Y1, Y2, X) + V
Compensation: Motorized
X-travel: 600 mm
X-speed: 200mm/s
Overall Length: 6500 mm
Overall Width: 2800 mm
Overall Height: 4500 mm
Approx. Weight: 50 Ton
Nominal Force: 6000 KN
Bending Length: 6000 mm
Vertical Distance: 4900 mm
Throat Depth: 500 mm
Stroke: 300 mm
Max. Opening: 600 mm
Main Power: 45 kW
Axes: 3+1 (Y1, Y2, X) + V
Compensation: Motorized
X-travel: 800 mm
X-speed: 200mm/s
Overall Length: 6500 mm
Overall Width: 2900 mm
Overall Height: 5100 mm
Approx. Weight: 60 Ton
Nominal Force: 8000 KN
Bending Length: 6000 mm
Vertical Distance: 4200 mm
Throat Depth: 600 mm
Stroke: 400 mm
Max. Opening: 800 mm
Main Power: 55 kW
Axes: 3+1 (Y1, Y2, X) + V
Compensation: Motorized
X-travel: 800 mm
X-speed: 200mm/s
Overall Length: 6500 mm
Overall Width: 2950 mm
Overall Height: 5300 mm
Approx. Weight: 90 Ton
Nominal Force: 8000 KN
Bending Length: 8000 mm
Vertical Distance: 6200 mm
Throat Depth: 600 mm
Stroke: 400 mm
Max. Opening: 800 mm
Main Power: 55 kW
Axes: 3+1 (Y1, Y2, X) + V
Compensation: Motorized
X-travel: 1000 mm
X-speed: 200mm/s
Overall Length: 8500 mm
Overall Width: 2950 mm
Overall Height: 5900 mm
Approx. Weight: 120 Ton
Parameters are subject to change without prior notice. Final laser power, exchange table structure, cutting head, control system, chiller, voltage, dust extraction, and quotation data should be confirmed according to the actual order.
Send material type, thickness range, part drawings, required tolerance, daily output target, workshop layout, voltage requirement, and any existing process photos or videos. PREF Group can use this information to recommend a practical configuration.
Yes. The final machine can be discussed according to working size, capacity, controller preference, safety system, tooling, automation, voltage, and shipping requirements.
The parameter tables are used for model selection and comparison. Final order specifications should be confirmed with PREF Group before quotation, production, or publishing a final datasheet.
Start from the part drawing and the production bottleneck. If the main issue is bending, cutting, welding, grooving, punching, or spare parts compatibility, PREF Group can compare the related product category and recommend the better fit.
