Our fiber laser cutting machine deliver high speed and high precision metal cutting for stainless steel, carbon steel and aluminum sheets across industrial applications.
A tube plate laser cutting machine combines sheet cutting and tube cutting capability in one system. It is attractive for shops that need both processes but cannot justify two separate machines at the beginning.
Main Features:
Share:

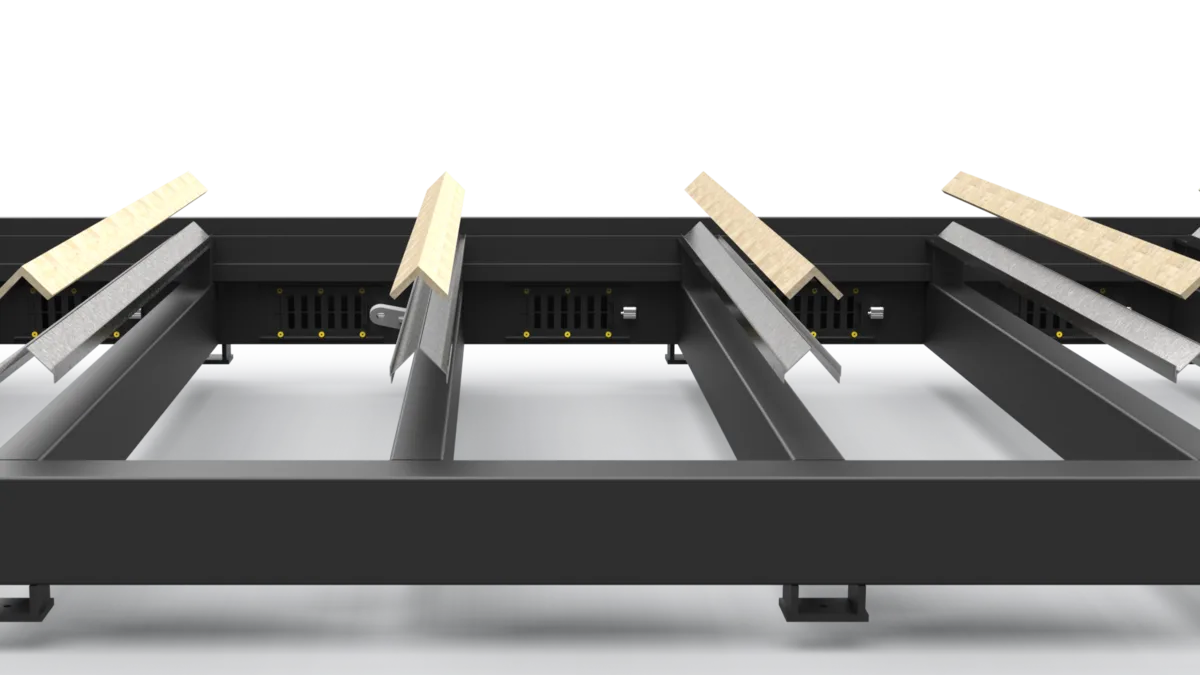

The mechanical bed uses a reinforced welded structure for both plate cutting and tube cutting operation. A hollow internal layout with reinforced sections improves structural strength, heat resistance, and vibration control during high-speed movement.
The bed can be treated by high-temperature annealing, high-speed shot blasting, and stress-relief processing to reduce internal stress and prevent long-term deformation. This helps maintain stable cutting accuracy for plate work, pipe work, and combined production tasks.

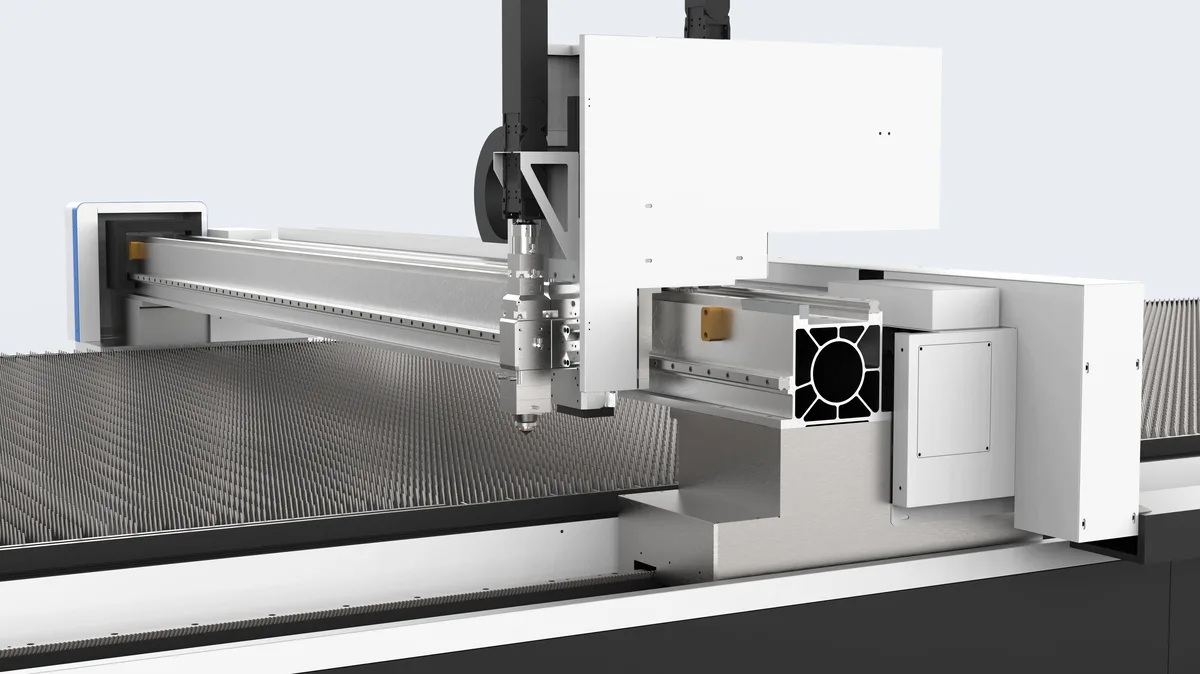

The beam is designed to combine high rigidity, lightweight movement, and stable dynamic performance. Finite element analysis can be used to optimize the structure for fast acceleration and accurate positioning.
A strong beam structure helps reduce vibration during high-speed cutting and supports consistent cutting quality across the full working area. Heat treatment improves rigidity and long-term stability, helping the beam resist deformation during extended use.

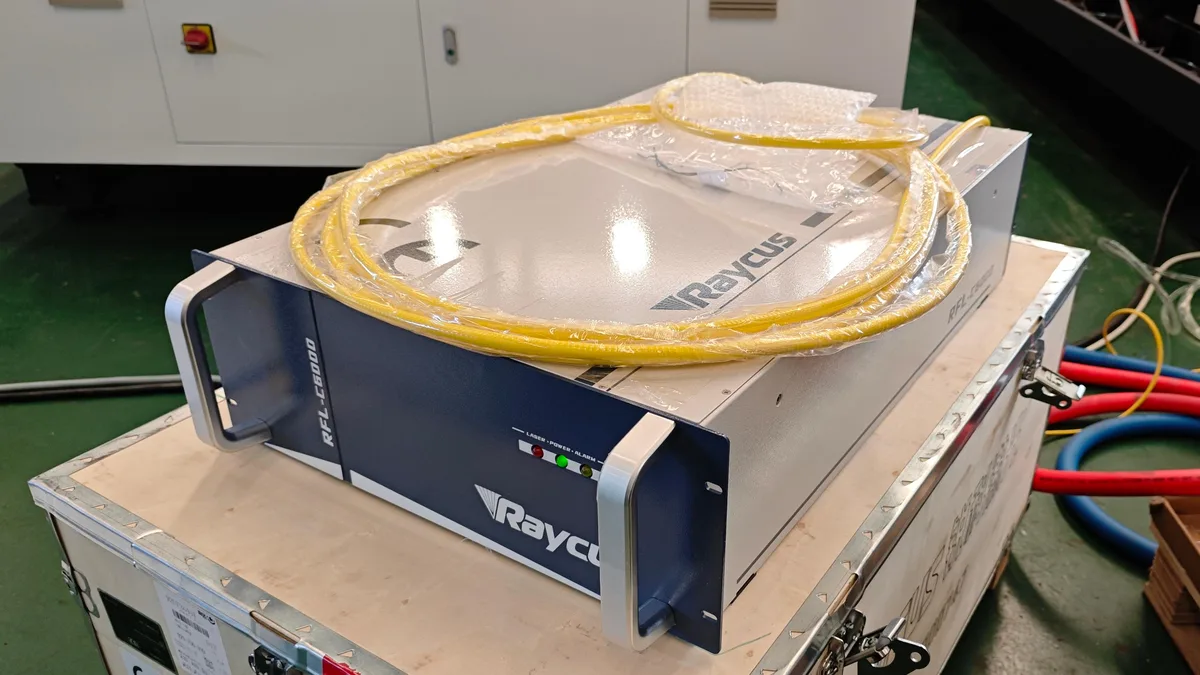

The fiber laser source provides stable cutting energy for sheet metal and tube processing. Different laser power levels can be selected according to plate thickness, tube wall thickness, material type, and production speed requirements.
High-quality fiber laser sources offer stable beam quality, high electro-optical conversion efficiency, compact structure, and convenient maintenance. A reliable laser source improves piercing performance, cutting speed, and long-term production stability.

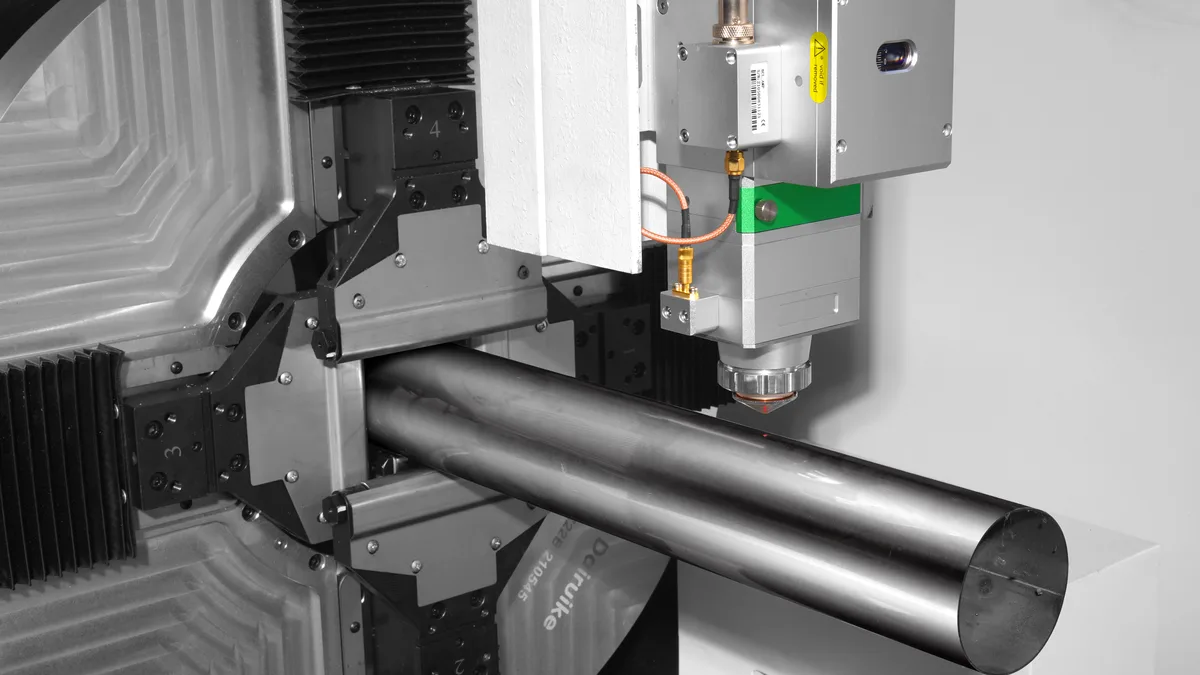

The auto-focusing cutting head adjusts focus position according to material thickness and cutting process requirements. This reduces manual setup time and improves cutting quality for both flat sheet cutting and tube cutting.
Anti-collision protection helps protect the cutting head during high-speed operation. Stable focus control improves piercing, kerf quality, slag control, and cutting consistency across different materials.

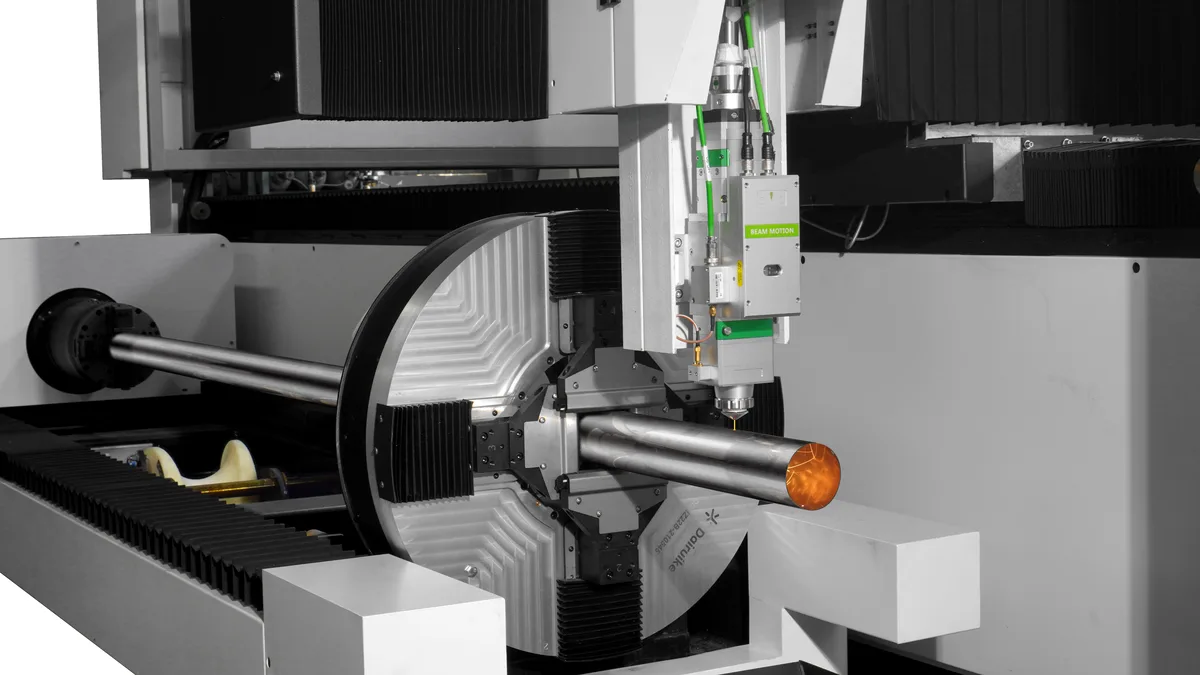

The pneumatic chuck supports automatic tube clamping and centering, reducing manual adjustment during tube cutting. Strong clamping force helps prevent slipping and supports accurate cutting of round, square, and rectangular tubes.
Compared with basic manual clamping, pneumatic clamping improves loading efficiency and positioning stability. Chuck size can be selected according to tube diameter, wall thickness, and production requirements.

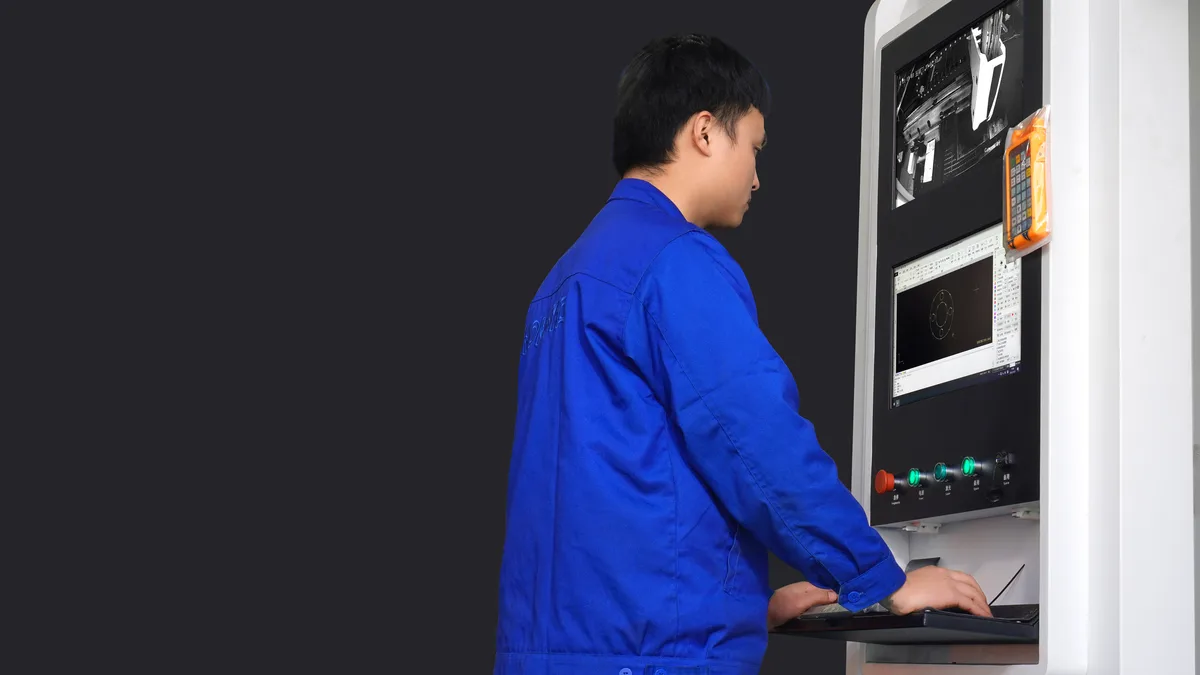

The control system manages plate cutting paths, tube cutting programs, nesting data, piercing parameters, gas control, and motion coordination. It allows the machine to switch between flat sheet cutting and pipe cutting tasks more efficiently.
Professional fiber laser cutting software supports power-based speed control, process databases, and separate speed settings for different cutting paths. A stable control system reduces debugging time and improves production consistency.

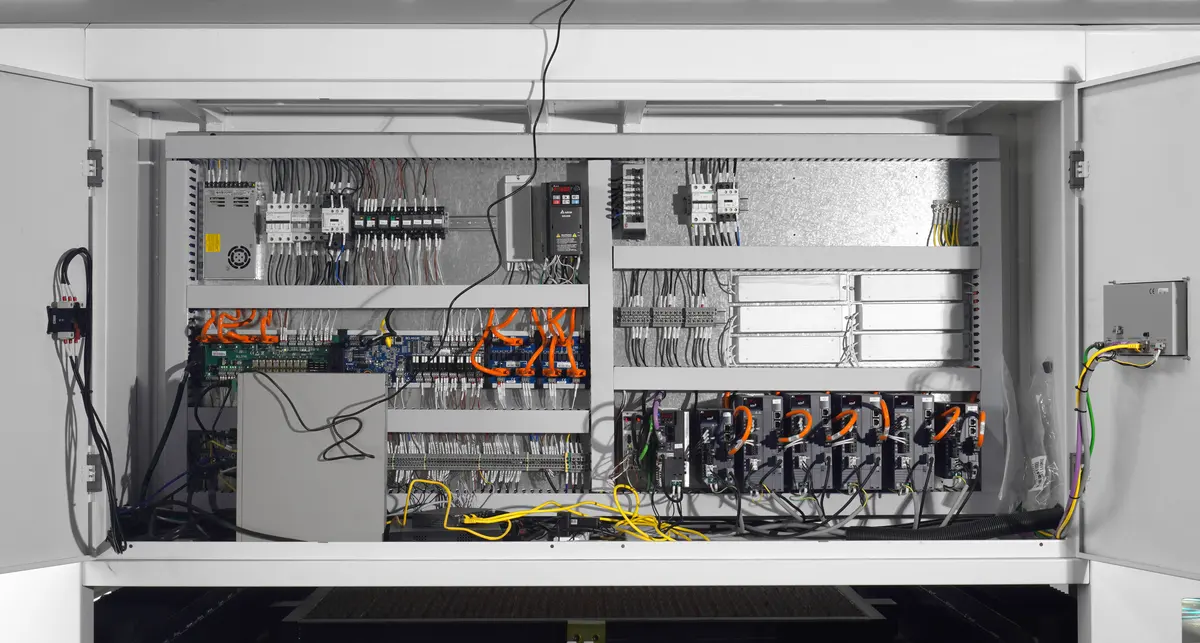

The electrical system integrates the CNC controller, servo drives, power supply modules, relays, circuit protection components, signal terminals, and cabinet cooling devices in a structured layout. A clean electrical cabinet design helps reduce interference, improve heat dissipation, and make daily inspection or maintenance more efficient.
For a fiber laser cutting machine, stable electrical control is directly related to cutting path accuracy, servo response, laser output coordination, gas control, safety interlock, and continuous production reliability. Proper wiring, reliable grounding, and protected electrical components help the machine maintain stable performance during high-speed cutting and long working shifts.

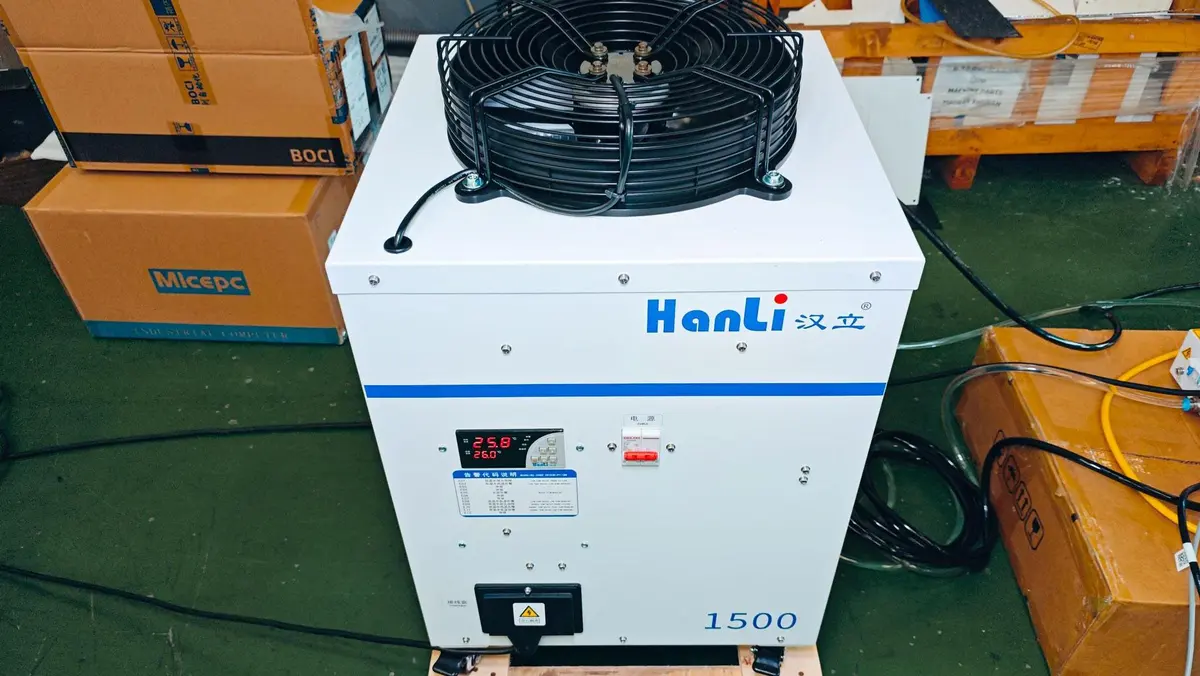

The water chiller controls the operating temperature of the laser source and optical components. Stable cooling helps maintain laser output and protects the cutting system during long production runs.
Protection functions such as over-temperature alarm, flow protection, and water-level monitoring improve equipment safety. The chiller should be matched with laser power, workshop temperature, and operating intensity.

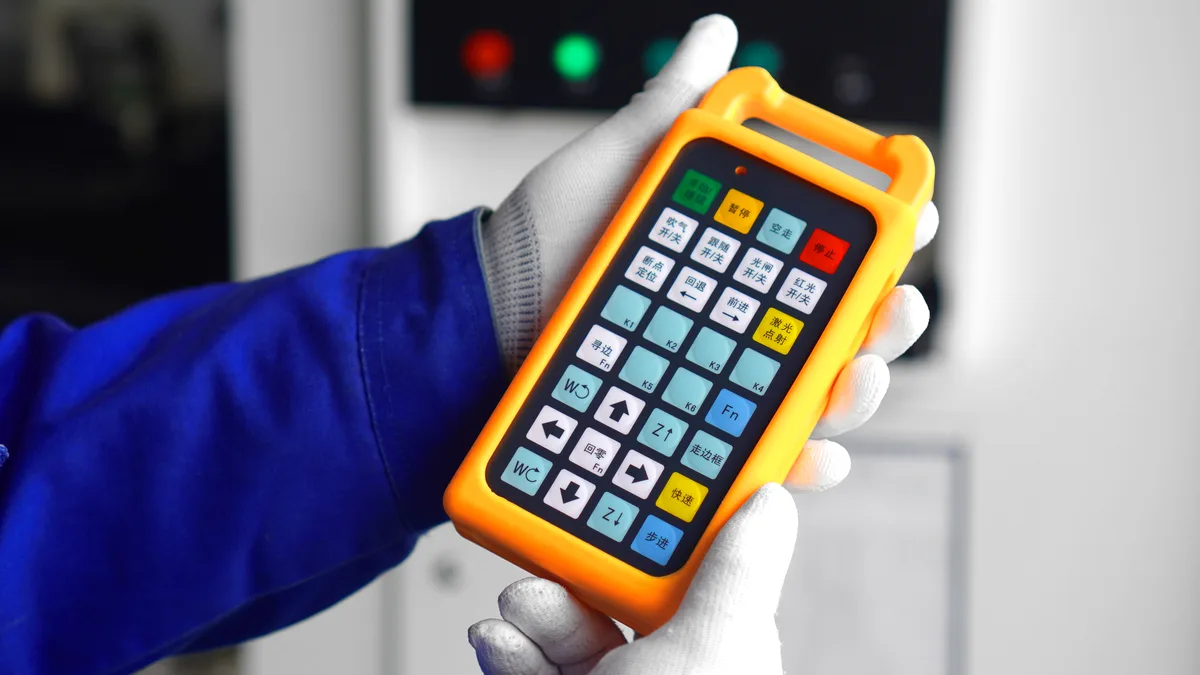

The handheld remote controller allows the operator to control key laser cutting machine movements and auxiliary functions from a convenient working position. Common functions can include axis jogging, edge finding, return operation, frame walking, laser emission confirmation, speed adjustment, and auxiliary gas or light control depending on the final machine configuration.
This remote control improves setup efficiency during plate loading, nozzle alignment, edge finding, and test cutting. It helps the operator stay close to the cutting area while keeping machine movement under direct control, making daily operation more flexible, safer, and easier to manage.
Nominal Force: 630 KN
Bending Length: 2500 mm
Vertical Distance: 2000 mm
Throat Depth: 350 mm
Stroke: 150 mm
Max. Opening: 350 mm
Main Power: 5 kW
Axes: 4+1+2 (Y1, Y2, X, R) + V + manual Z1/Z2
Compensation: Motorized
X-travel: 600 mm
X-speed: 200mm/s
Overall Length: 3100 mm
Overall Width: 1500 mm
Overall Height: 2300 mm
Approx. Weight: 5.8 Ton
Nominal Force: 1000 KN
Bending Length: 3200 mm
Vertical Distance: 2700 mm
Throat Depth: 400 mm
Stroke: 200 mm
Max. Opening: 420 mm
Main Power: 8.7 kW
Axes: 4+1+2 (Y1, Y2, X, R) + V + manual Z1/Z2
Compensation: Motorized
X-travel: 600 mm
X-speed: 200mm/s
Overall Length: 3700 mm
Overall Width: 1600 mm
Overall Height: 2500 mm
Approx. Weight: 8.5 Ton
Nominal Force: 1000 KN
Bending Length: 4000 mm
Vertical Distance: 3500 mm
Throat Depth: 400 mm
Stroke: 200 mm
Max. Opening: 420 mm
Main Power: 8.7 kW
Axes: 4+1+2 (Y1, Y2, X, R) + V + manual Z1/Z2
Compensation: Motorized
X-travel: 600 mm
X-speed: 200mm/s
Overall Length: 4500 mm
Overall Width: 1600 mm
Overall Height: 2500 mm
Approx. Weight: 10 Ton
Nominal Force: 1250 KN
Bending Length: 3200 mm
Vertical Distance: 2700 mm
Throat Depth: 400 mm
Stroke: 200 mm
Max. Opening: 420 mm
Main Power: 10.8 kW
Axes: 4+1+2 (Y1, Y2, X, R) + V + manual Z1/Z2
Compensation: Motorized
X-travel: 600 mm
X-speed: 200mm/s
Overall Length: 3700 mm
Overall Width: 1600 mm
Overall Height: 2500 mm
Approx. Weight: 9.5 Ton
Nominal Force: 1250 KN
Bending Length: 4000 mm
Vertical Distance: 3500 mm
Throat Depth: 400 mm
Stroke: 200 mm
Max. Opening: 420 mm
Main Power: 10.8 kW
Axes: 4+1+2 (Y1, Y2, X, R) + V + manual Z1/Z2
Compensation: Motorized
X-travel: 600 mm
X-speed: 200mm/s
Overall Length: 4500 mm
Overall Width: 1600 mm
Overall Height: 2500 mm
Approx. Weight: 12.5 Ton
Nominal Force: 1600 KN
Bending Length: 3200 mm
Vertical Distance: 2700 mm
Throat Depth: 400 mm
Stroke: 200 mm
Max. Opening: 420 mm
Main Power: 13.2 kW
Axes: 4+1+2 (Y1, Y2, X, R) + V + manual Z1/Z2
Compensation: Motorized
X-travel: 600 mm
X-speed: 200mm/s
Overall Length: 3700 mm
Overall Width: 1650 mm
Overall Height: 2600 mm
Approx. Weight: 11 Ton
Nominal Force: 1600 KN
Bending Length: 4000 mm
Vertical Distance: 3500 mm
Throat Depth: 400 mm
Stroke: 200 mm
Max. Opening: 420 mm
Main Power: 13.2 kW
Axes: 4+1+2 (Y1, Y2, X, R) + V + manual Z1/Z2
Compensation: Motorized
X-travel: 600 mm
X-speed: 200mm/s
Overall Length: 4500 mm
Overall Width: 1650 mm
Overall Height: 2600 mm
Approx. Weight: 12.5 Ton
Nominal Force: 2000 KN
Bending Length: 3200 mm
Vertical Distance: 2700 mm
Throat Depth: 400 mm
Stroke: 200 mm
Max. Opening: 420 mm
Main Power: 13.2 kW
Axes: 4+1+2 (Y1, Y2, X, R) + V + manual Z1/Z2
Compensation: Motorized
X-travel: 600 mm
X-speed: 200mm/s
Overall Length: 3700 mm
Overall Width: 1700 mm
Overall Height: 2700 mm
Approx. Weight: 13.5 Ton
Nominal Force: 2000 KN
Bending Length: 4000 mm
Vertical Distance: 3500 mm
Throat Depth: 400 mm
Stroke: 200 mm
Max. Opening: 420 mm
Main Power: 13.2 kW
Axes: 4+1+2 (Y1, Y2, X, R) + V + manual Z1/Z2
Compensation: Motorized
X-travel: 600 mm
X-speed: 200mm/s
Overall Length: 4500 mm
Overall Width: 1700 mm
Overall Height: 2700 mm
Approx. Weight: 14 Ton
Nominal Force: 2500 KN
Bending Length: 3200 mm
Vertical Distance: 2700 mm
Throat Depth: 400 mm
Stroke: 200 mm
Max. Opening: 420 mm
Main Power: 16.7 kW
Axes: 4+1 (Y1, Y2, X, R) + V
Compensation: Motorized
X-travel: 600 mm
X-speed: 200mm/s
Overall Length: 3700 mm
Overall Width: 1700 mm
Overall Height: 2760 mm
Approx. Weight: 15.5 Ton
Nominal Force: 3000 KN
Bending Length: 3200 mm
Vertical Distance: 2700 mm
Throat Depth: 400 mm
Stroke: 300 mm
Max. Opening: 500 mm
Main Power: 21.4 kW
Axes: 4+1 (Y1, Y2, X, R) + V
Compensation: Motorized
X-travel: 600 mm
X-speed: 200mm/s
Overall Length: 3700 mm
Overall Width: 1800 mm
Overall Height: 2900 mm
Approx. Weight: 16.8 Ton
Nominal Force: 4000 KN
Bending Length: 4000 mm
Vertical Distance: 3100 mm
Throat Depth: 400 mm
Stroke: 300 mm
Max. Opening: 600 mm
Main Power: 26.9 kW
Axes: 4+1 (Y1, Y2, X, R) + V
Compensation: Motorized
X-travel: 600 mm
X-speed: 200mm/s
Overall Length: 4500 mm
Overall Width: 2450 mm
Overall Height: 3500 mm
Approx. Weight: 31 Ton
Nominal Force: 5000 KN
Bending Length: 5000 mm
Vertical Distance: 4500 mm
Throat Depth: 500 mm
Stroke: 300 mm
Max. Opening: 600 mm
Main Power: 37 kW
Axes: 3+1 (Y1, Y2, X) + V
Compensation: Motorized
X-travel: 600 mm
X-speed: 200mm/s
Overall Length: 6500 mm
Overall Width: 2800 mm
Overall Height: 4500 mm
Approx. Weight: 50 Ton
Nominal Force: 6000 KN
Bending Length: 6000 mm
Vertical Distance: 4900 mm
Throat Depth: 500 mm
Stroke: 300 mm
Max. Opening: 600 mm
Main Power: 45 kW
Axes: 3+1 (Y1, Y2, X) + V
Compensation: Motorized
X-travel: 800 mm
X-speed: 200mm/s
Overall Length: 6500 mm
Overall Width: 2900 mm
Overall Height: 5100 mm
Approx. Weight: 60 Ton
Nominal Force: 8000 KN
Bending Length: 6000 mm
Vertical Distance: 4200 mm
Throat Depth: 600 mm
Stroke: 400 mm
Max. Opening: 800 mm
Main Power: 55 kW
Axes: 3+1 (Y1, Y2, X) + V
Compensation: Motorized
X-travel: 800 mm
X-speed: 200mm/s
Overall Length: 6500 mm
Overall Width: 2950 mm
Overall Height: 5300 mm
Approx. Weight: 90 Ton
Nominal Force: 8000 KN
Bending Length: 8000 mm
Vertical Distance: 6200 mm
Throat Depth: 600 mm
Stroke: 400 mm
Max. Opening: 800 mm
Main Power: 55 kW
Axes: 3+1 (Y1, Y2, X) + V
Compensation: Motorized
X-travel: 1000 mm
X-speed: 200mm/s
Overall Length: 8500 mm
Overall Width: 2950 mm
Overall Height: 5900 mm
Approx. Weight: 120 Ton
Standard cut length is 6 m, and customized cut length is available. Parameters are subject to change without prior notice. Final laser power, chuck diameter, cutting head, control system, tube cutting device, voltage, and quotation data should be confirmed according to the actual order.
Send material type, thickness range, part drawings, required tolerance, daily output target, workshop layout, voltage requirement, and any existing process photos or videos. PREF Group can use this information to recommend a practical configuration.
Yes. The final machine can be discussed according to working size, capacity, controller preference, safety system, tooling, automation, voltage, and shipping requirements.
The parameter tables are used for model selection and comparison. Final order specifications should be confirmed with PREF Group before quotation, production, or publishing a final datasheet.
Start from the part drawing and the production bottleneck. If the main issue is bending, cutting, welding, grooving, punching, or spare parts compatibility, PREF Group can compare the related product category and recommend the better fit.
